OmniSight Sighting Compass

OmniSight Sighting Compass

Regular price ¥36,300 JPY
Regular price Sale price ¥36,300 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.

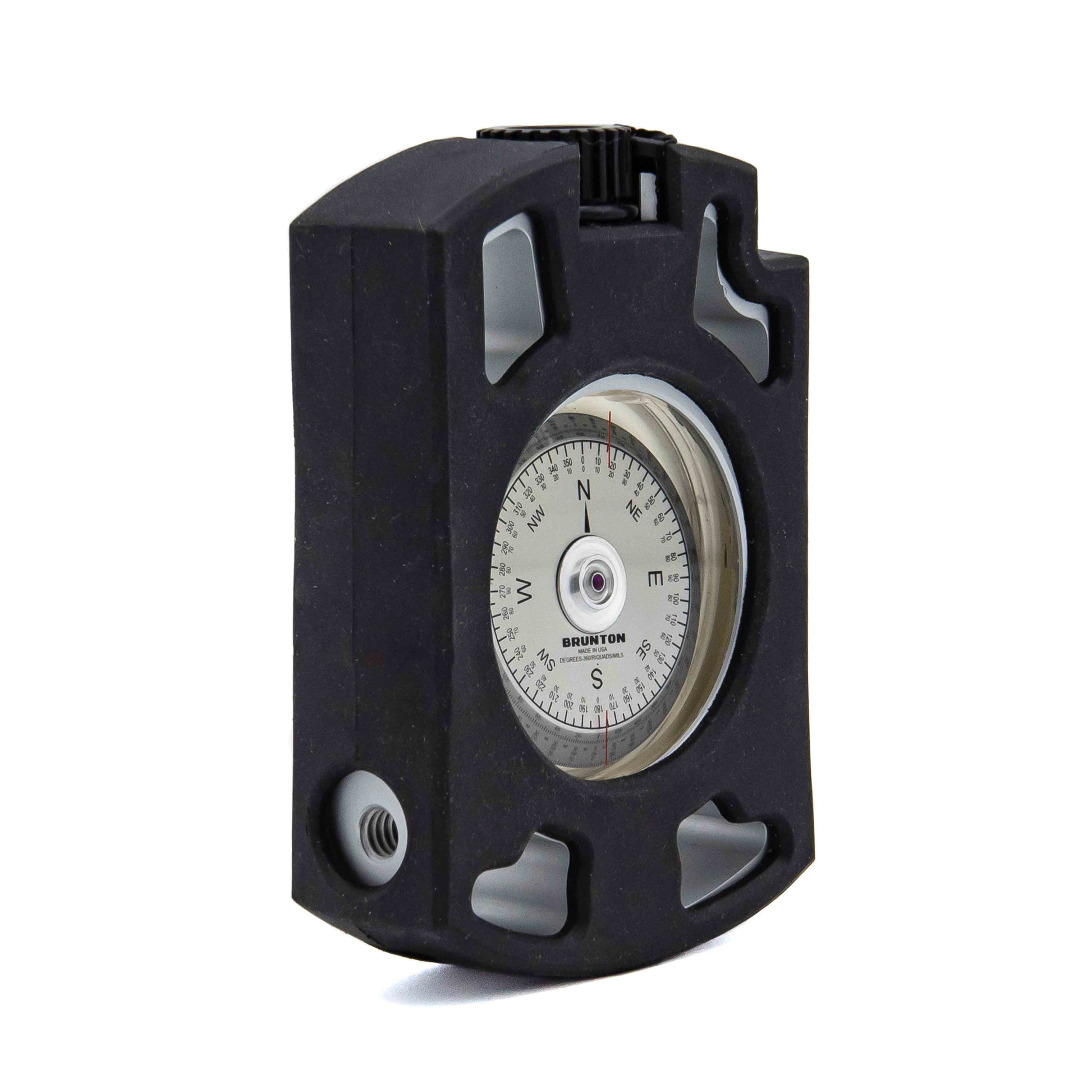

A sturdy 4-scale sighting instrument!  The OmniSight spot-through compass offers the convenience of multiple precision instruments in one handheld unit thanks to forward and reciprocal azimuth bearings, 90° quadrants, and 6400 MILS.  Featuring an anodized aluminum body with a silicone cover for added durability, the OmniSight is the most durable sighting compass on the market.

OmniSight Manuals and Videos

Magnetic Zones:  The OmniSight features a disc magnet that is optimized into three zones.  Please visit the Needle Balancing Page to identify your main zone, and select it below.

View full details

Details for OmniSight Sighting Compass

FEATURES

• Made in the USA in Riverton, Wyoming.

• Offers precision measurements of horizontal bearings through direct sighting.

Allows for 4 different scales of bearing measurements:
• Scale 1: MILS (0-6400)
• Scale 2: Quadrant 0-90°
• Scale 3: Reciprocal Azimuth 0-360°
• Scale 4: Azimuth 0-360°

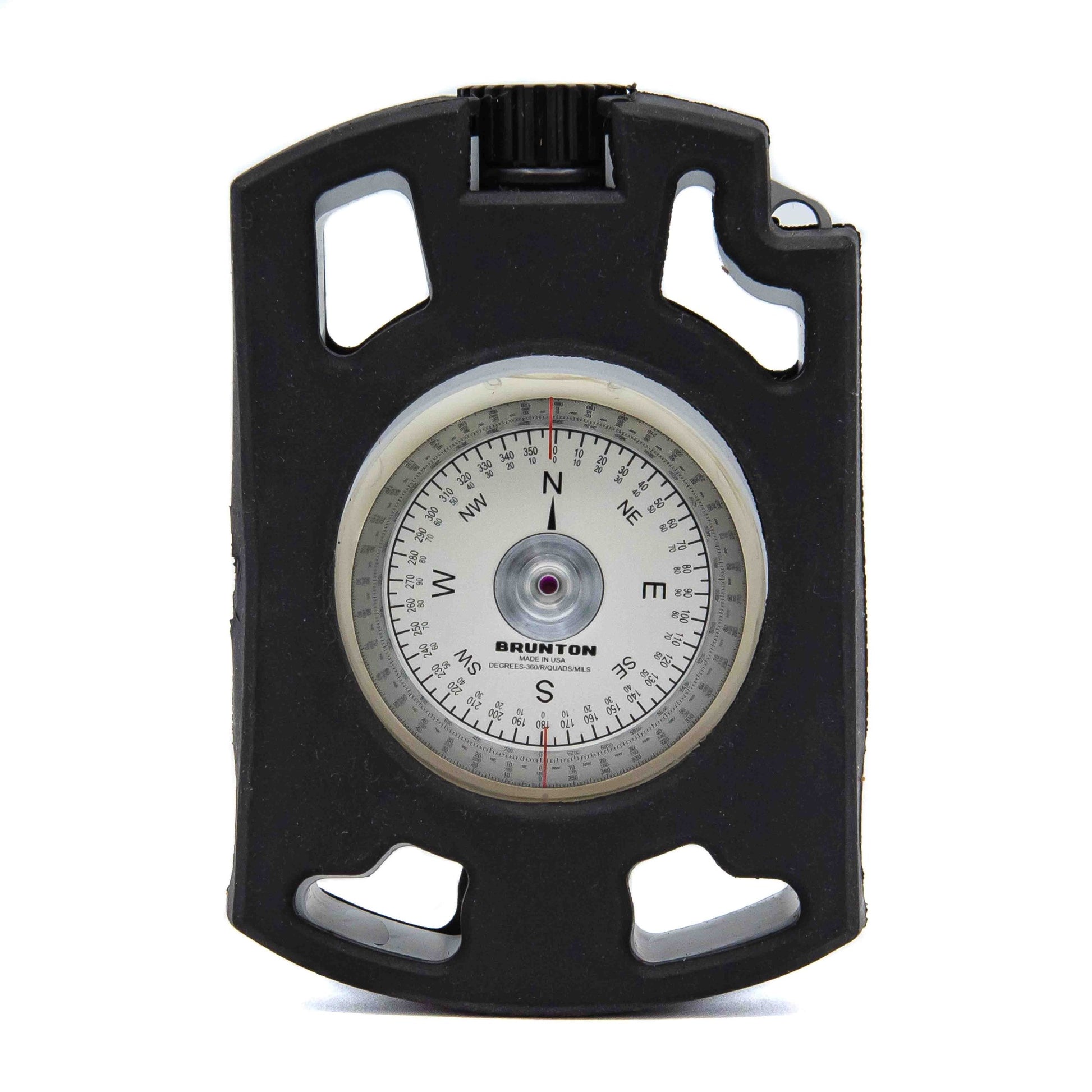

• Dual readings on the top dial face in Azimuth or Quadrant with 5° graduations.

• Sapphire jewel bearing with anti-static dampening fluid.

• Available in Northern Hemisphere, Equatorial, and Southern Hemisphere models.

• Offers up to 10x magnification with an adjustable lens.

• Designed with durability in mind, with a CNC machined anodized aluminum housing and shock absorbing silicone cover.

• Use as a stand-alone unit or thread onto a Jacob’s Staff or non-magnetic tripod, with built-in threads.

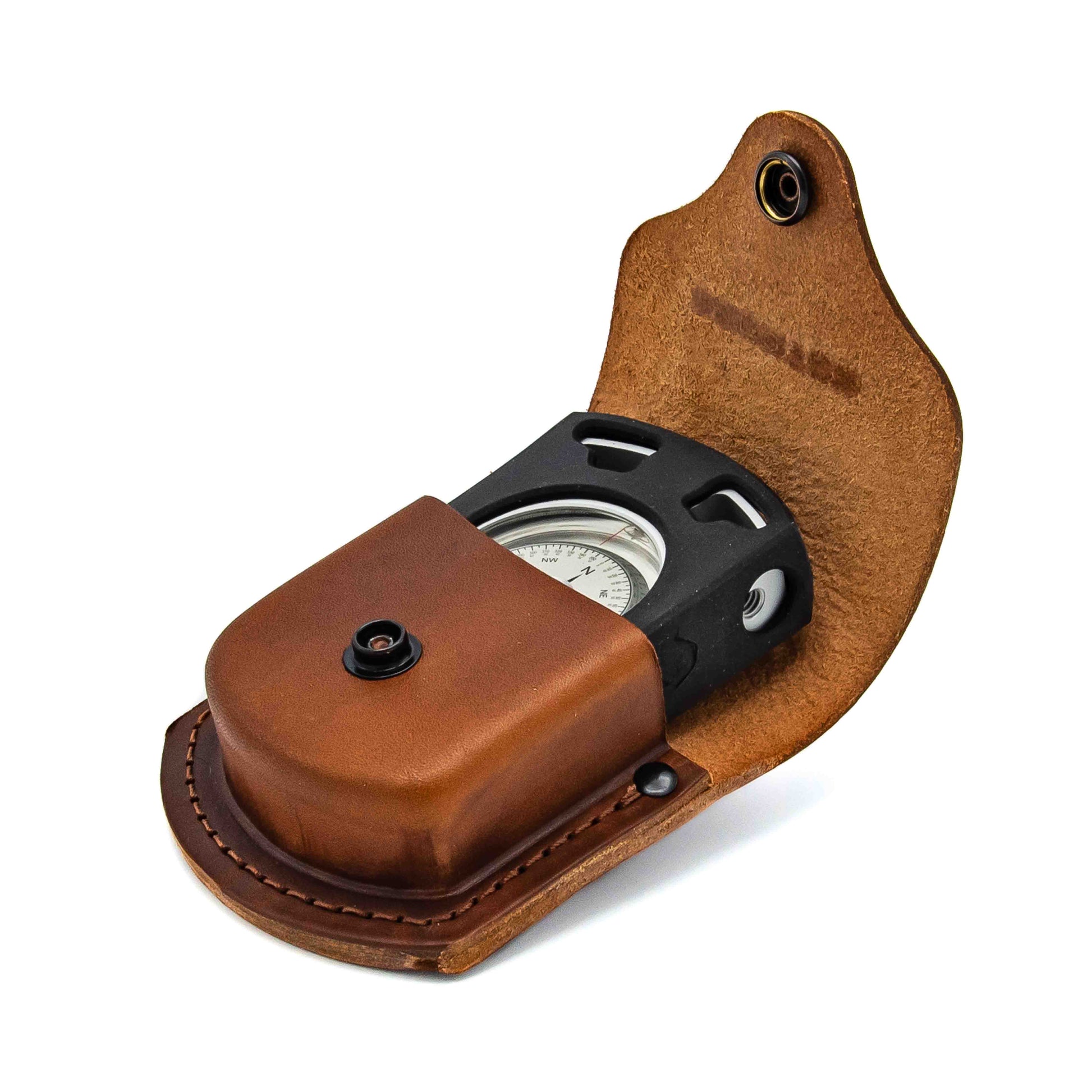

• Comes with a protective leather case, perfect for carrying in the field.

TECH SPECS

• DIMENSIONS: 2.5 x 3.5 x 0.5 in | 76.3 x 8.8 x 1.3 cm
• WEIGHT: 11.8 oz | 335.6 g
• TOP VIEW AZIMUTH: 5˚ graduations w/ ± 2.5˚ accuracy
• SIDE VIEW AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• SIDE VIEW MILS: 20 mils w/ ± 10 mils accuracy
