Miner's D-Light Transit

Miner's D-Light Transit

Regular price €626,95 EUR
Regular price Sale price €626,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

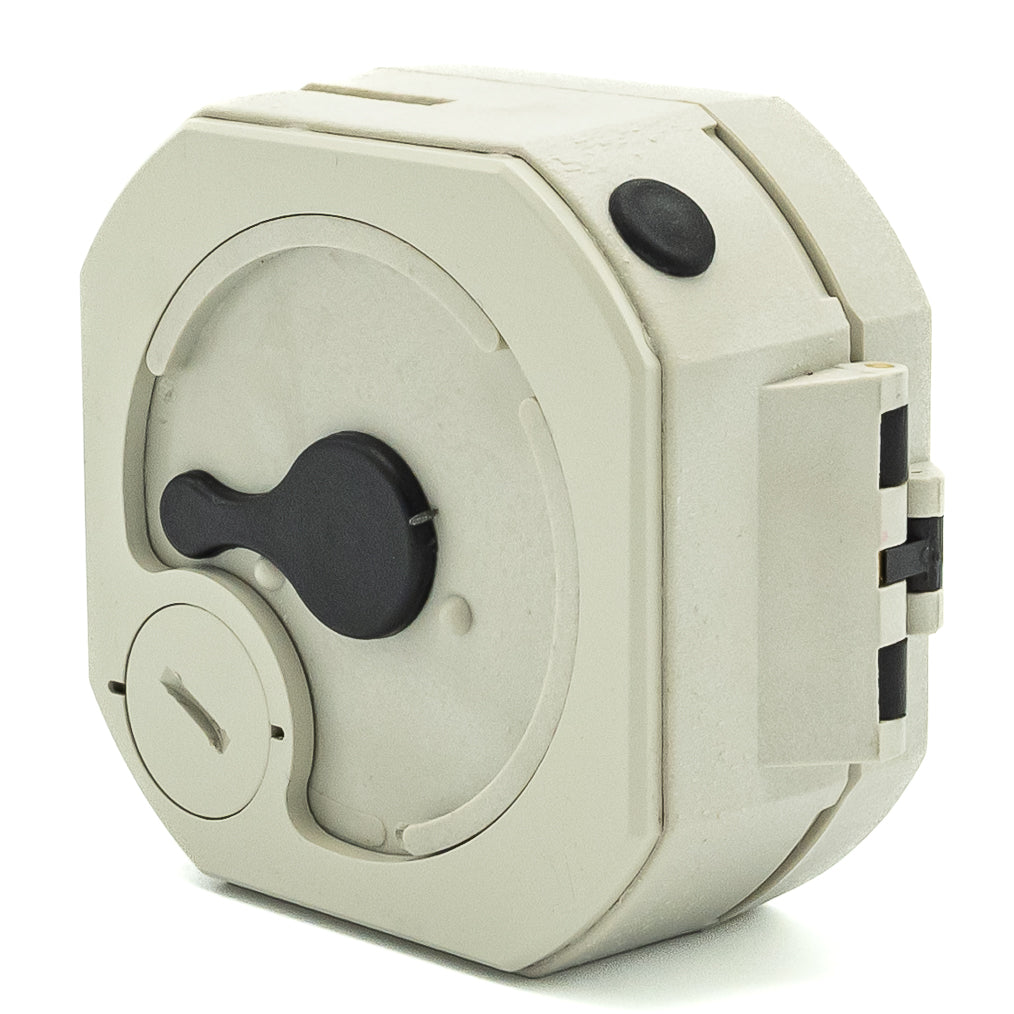

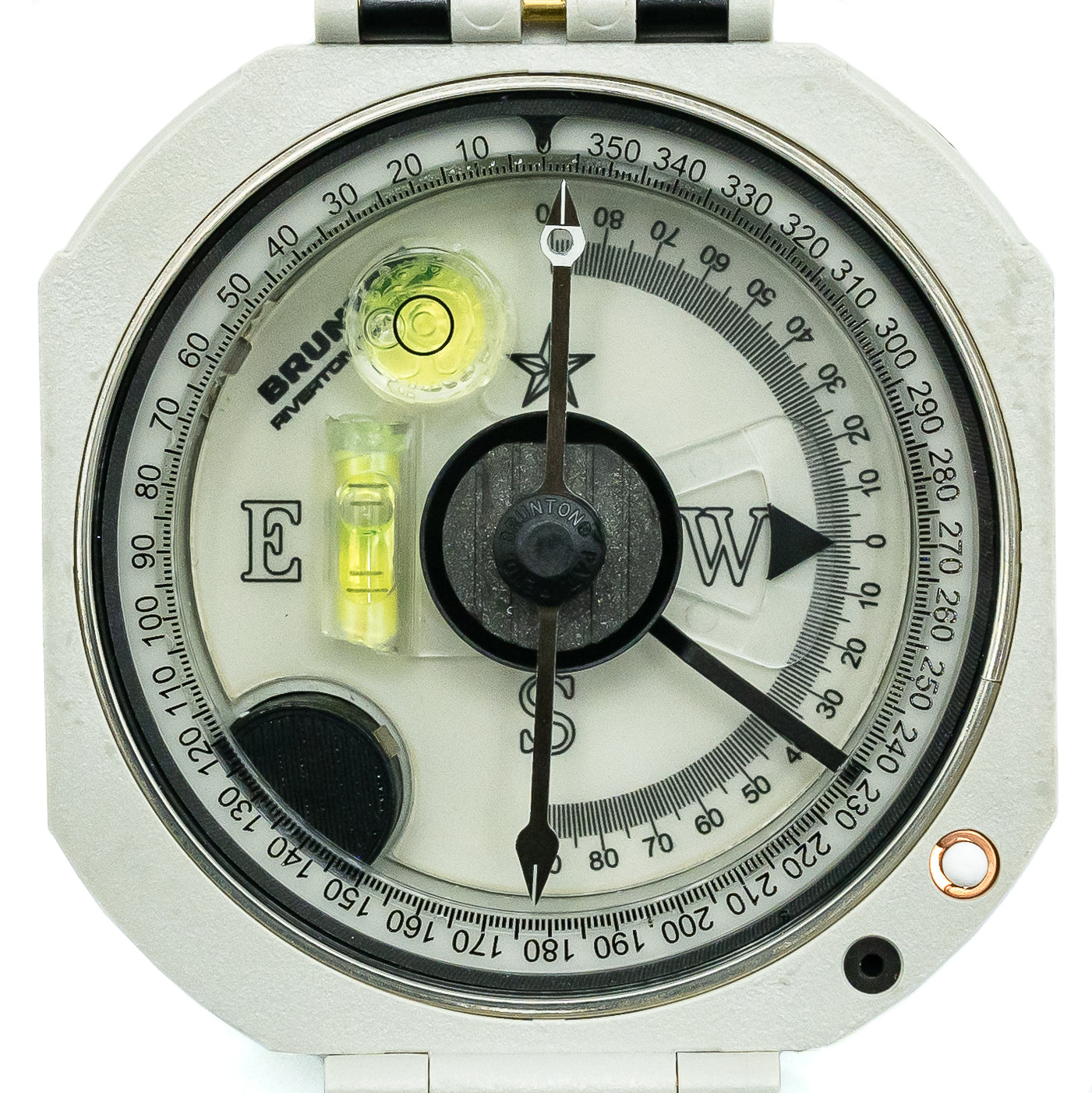

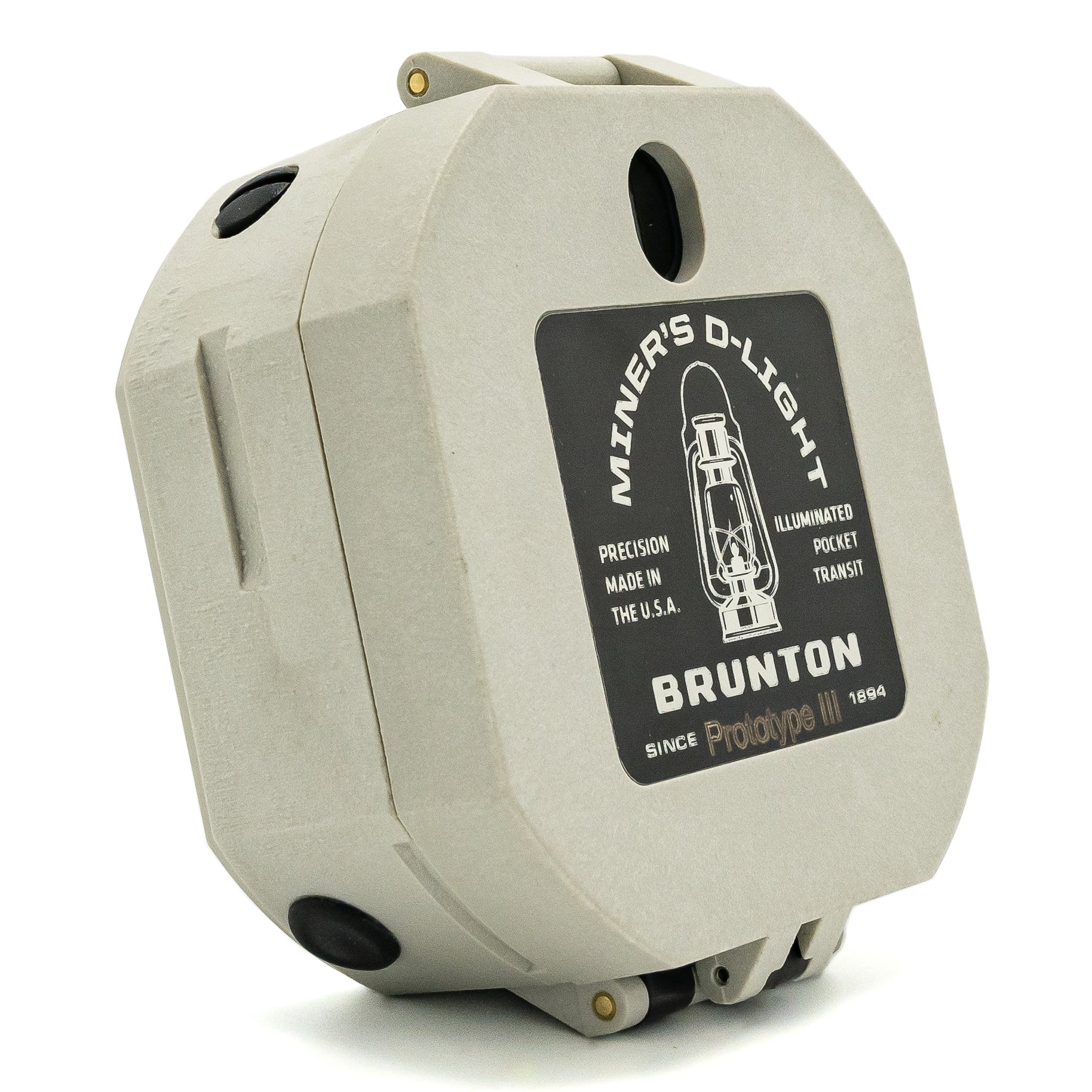

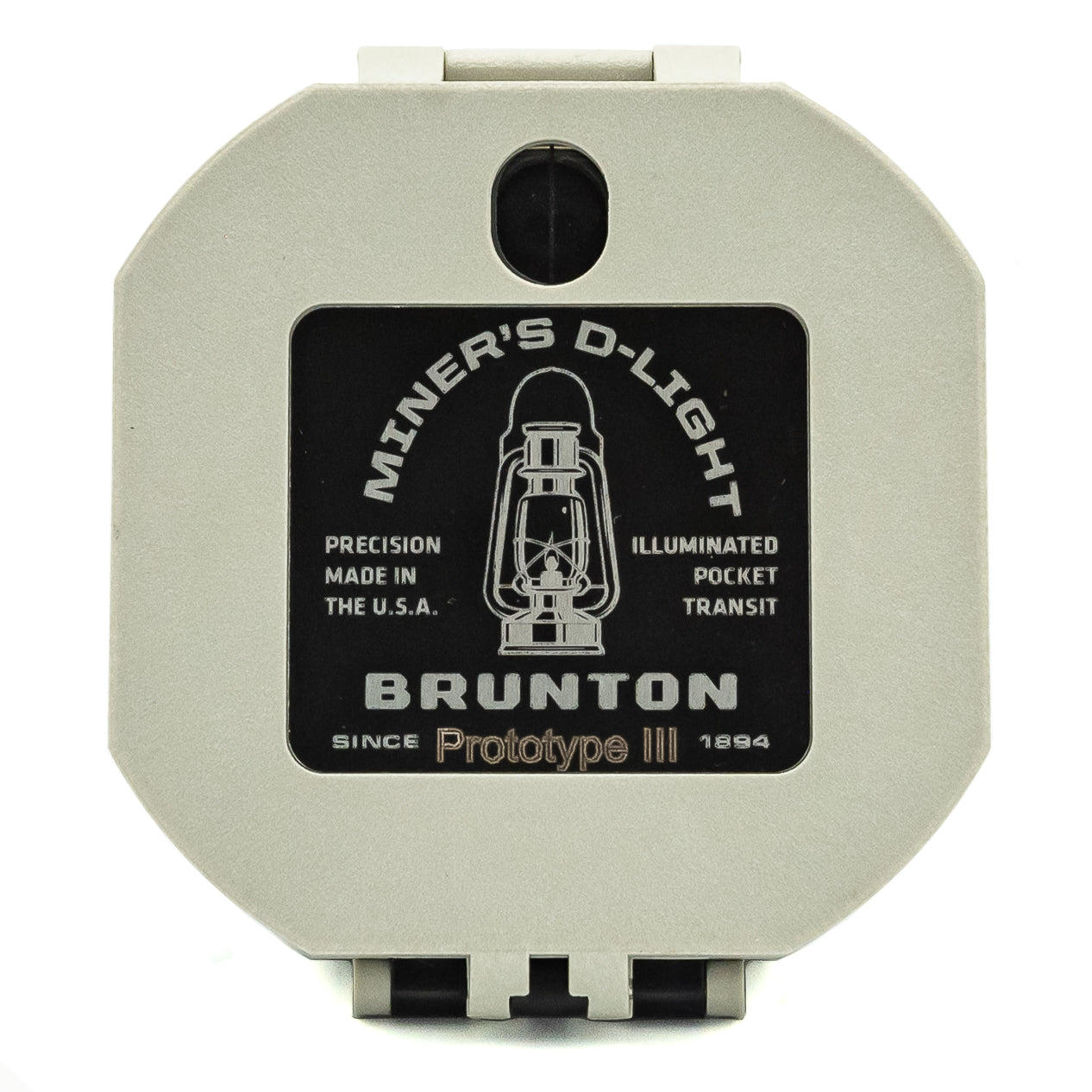

Introducing a glow-in-the-dark transit!  The Miner's D-Light is an illuminated version of the classic ComPro Transit designed for easier measurements in low light settings such as caves and mines.  With the push and release of a button, battery-powered electroluminescent panels illuminate the azimuth ring and baseplate for 60 seconds to allow time for precision measurements.  Amazingly, the Miner's D-Light is even lighter than the ComPro, making it now the new lightest Brunton transit on the market!  Made in the USA in Riverton, Wyoming.  Gfeller leather case is included.

Miner's D-Light Transit Manuals and Videos - coming soon

Needle Balancing:  If your main region of transit use will not be in the United States, your needle will need a special balance.  Please visit the Needle Balancing Page to identify your main zone and select it below.

Special Instructions: Please read

  • Pull clear battery tab before use
  • To prevent premature battery failure, please store the Miner's D-Light Transit in its leather case with ON/OFF button facing UP
  • ONLY use a Duracell 1/3N 3-Volt non-magnetic battery. Other brands may affect compass needle accuracy.
  • 1 year warranty includes all components except electronics and battery. Limit 1 warranty claim per unit for electronics and battery system.
View full details

Details for Miner's D-Light Transit

FEATURES

• Push and release button activates 60-second illumination cycle.

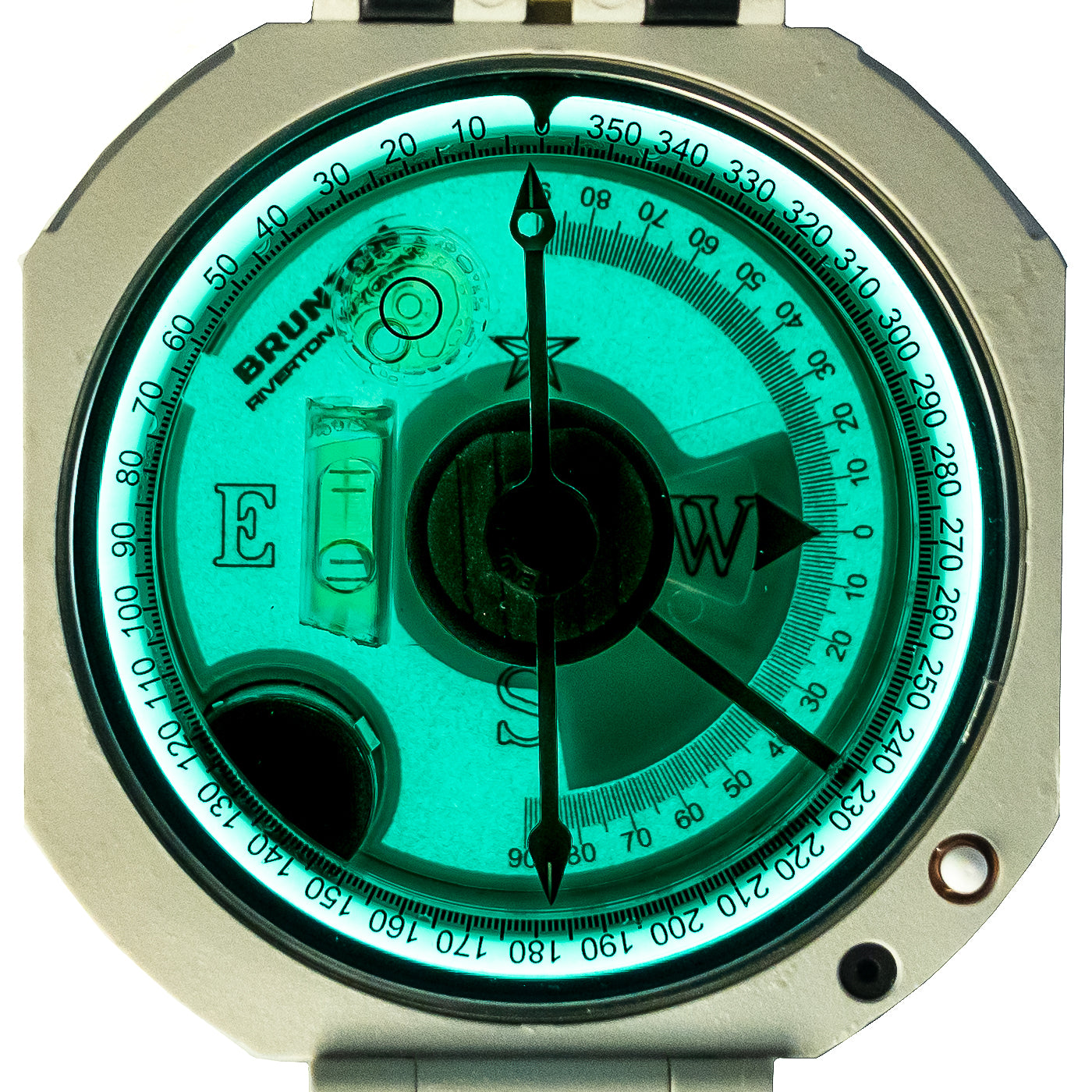

• Electroluminescent panels illuminate azimuth ring, baseplate, and bubble levels.

• Powered by a non-magnetic, easy-to-source 3V battery.

• Contains no radioactive materials.

• Needle is easy to identify and read in all light conditions.

• Traditional transit measurement method.

• Same light and tough composite body as the ComPro transit.

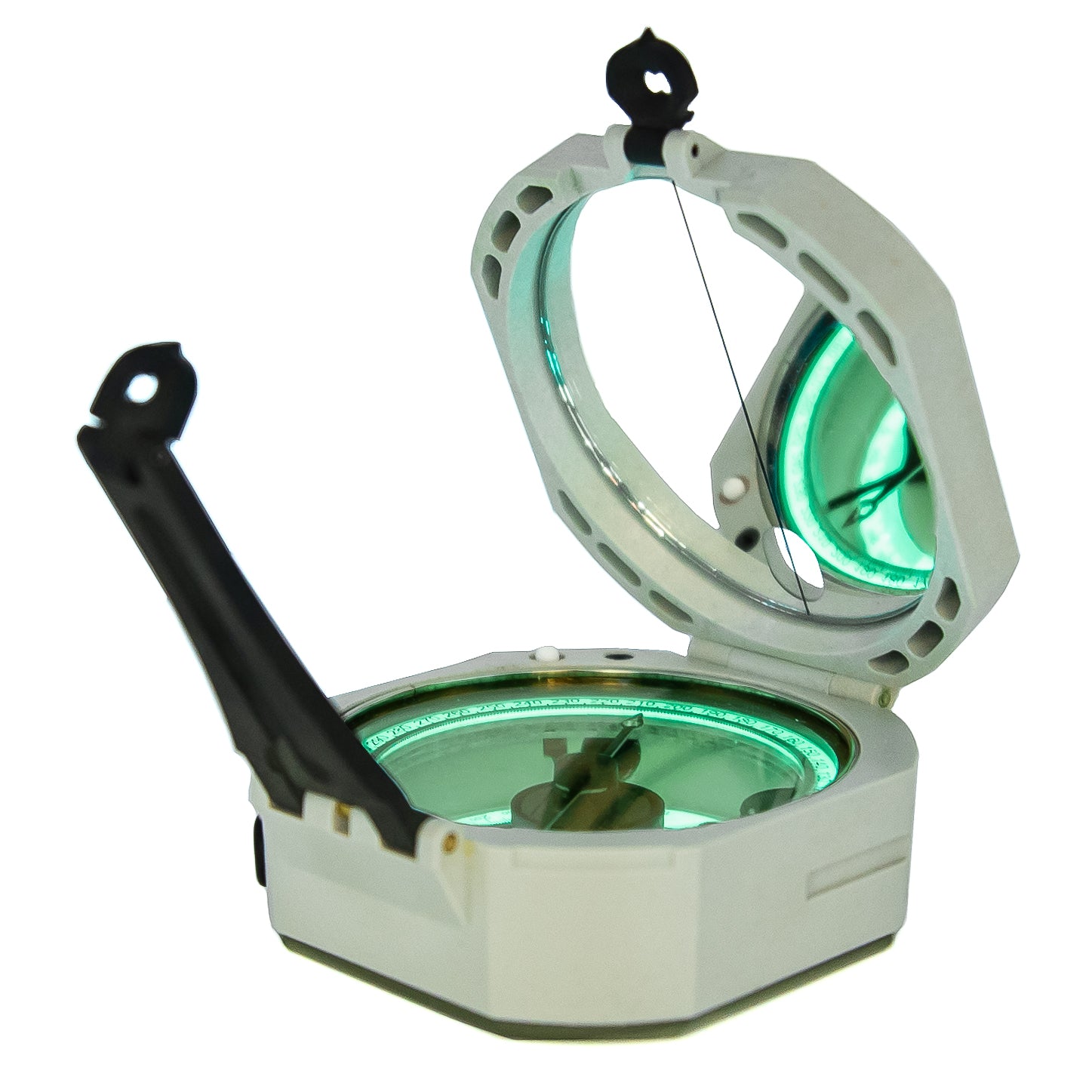

• The mirror enables sighting and measurement of bearings and vertical angles.

• Short and long sights give the user additional functionality and accuracy when shooting bearings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world.

• Induction dampening makes for a quick-settling needle.

• The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

• Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.

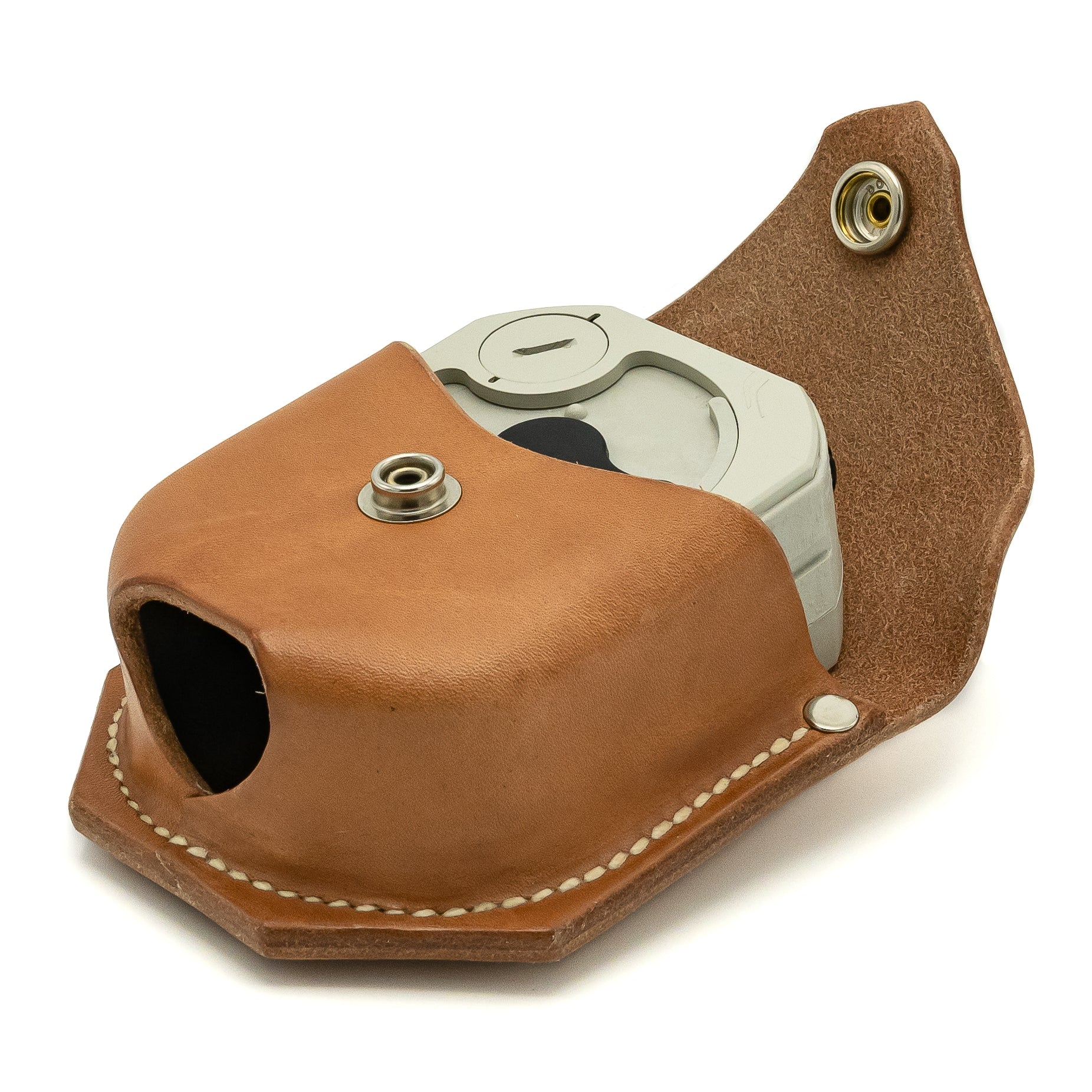

• Each comes with a protective leather case, perfect for carrying your Brunton in the field.

• Made in the USA in Riverton, Wyoming.

TECH SPECS

• MEASUREMENT STYLE: Strike & Dip
• DIMENSIONS (closed): 3.1 x 2.7 x 1.4 in | 8 x 7 x 3.4 cm
• WEIGHT: 5.3 oz | 150 g
• AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
• PERCENT GRADE: 5% graduations
• DECLINATION ADJUSTMENT: ± 180˚
