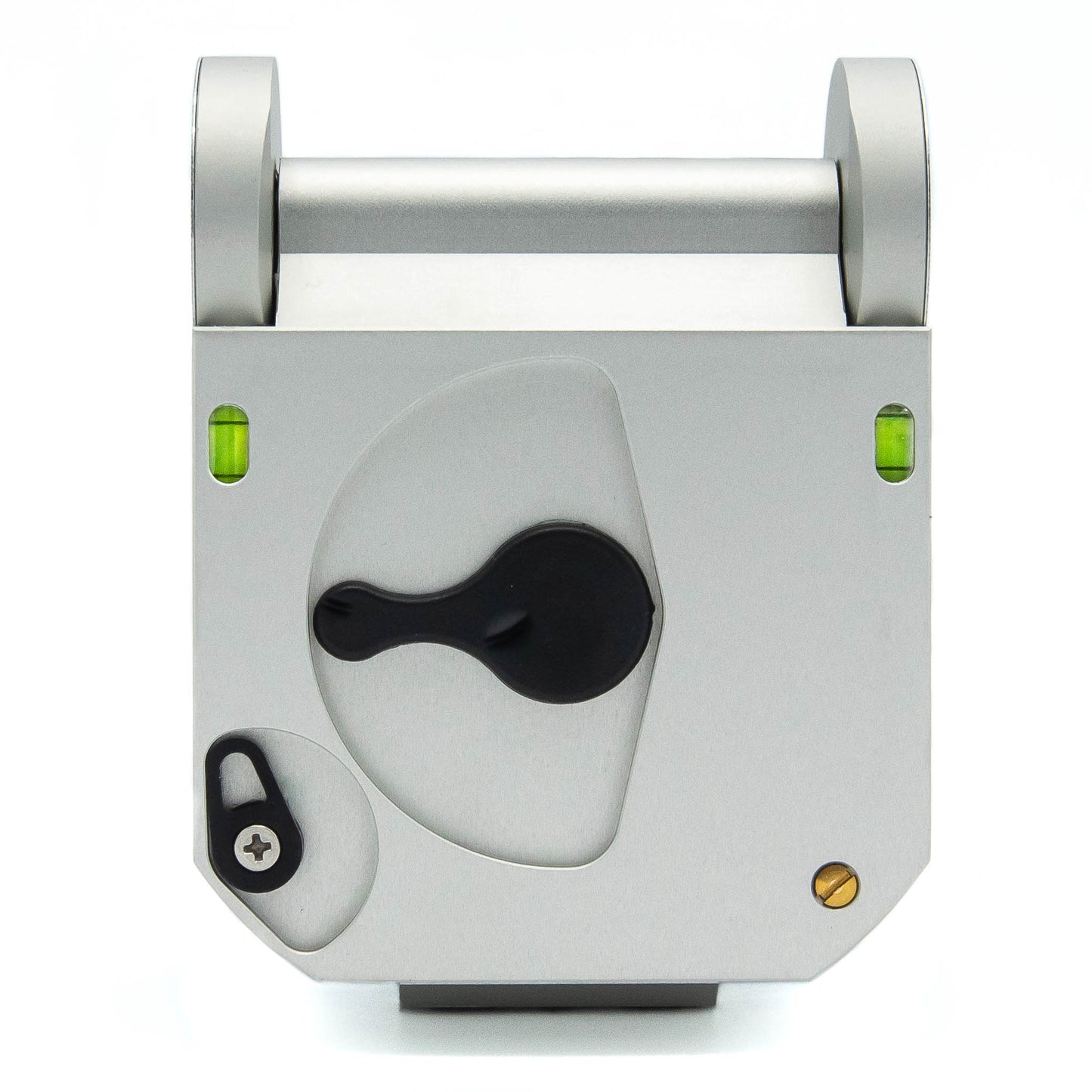

Geo™ Transit - Blemished

Geo™ Transit - Blemished

Regular price $671.95 USD
Regular price $839.95 USD Sale price $671.95 USD
Sale Sold out
Shipping calculated at checkout.

Large hinge dial enables multiple measurement methods!  A versatile tool that combines traditional transit measurement methods with some simultaneous measurement capabilities.  The Geo can take traditional strike & dip measurements or can measure dip & dip direction simultaneously.  Leather case is included.

Geo Transit Manuals and Videos

Needle Balancing:  If your main region of transit use will not be in the United States, your needle will need a special balance.  Please visit the Needle Balancing Page to identify your main zone, and select it below.

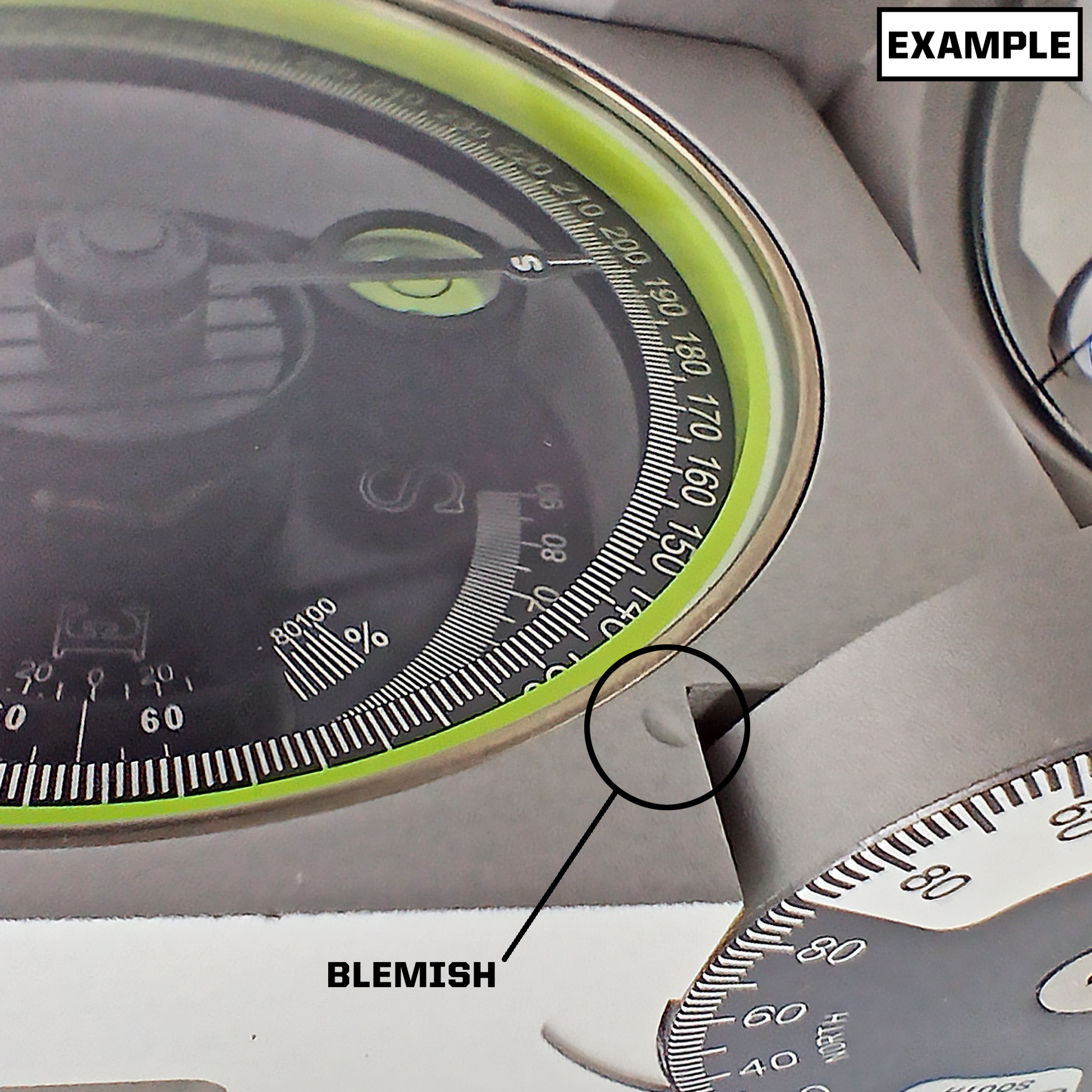

*Our Outlet products are high-quality items that don’t quite meet our rigorous production standards for aesthetic perfection but remain 100% functional. Products in this category may feature minor cosmetic imperfections, such as slight blemishes in paint or anodization, minor surface scuffs, or color variations. They might also be discontinued models or come in outdated packaging. These minor details don’t affect the performance or durability of the product, making them an excellent choice for those seeking precision gear at an exceptional value. Rest assured, every item is thoroughly inspected to ensure it meets Brunton’s standards for reliability and craftsmanship.

View full details

Details for Geo™ Transit - Blemished

FEATURES

• The hinge dial allows for simultaneous measurement of dip & dip direction or trend & plunge on certain surfaces and orientations.

• The lid opens to 220° and the hinge dial has indicators of which needle to read for plunge direction.

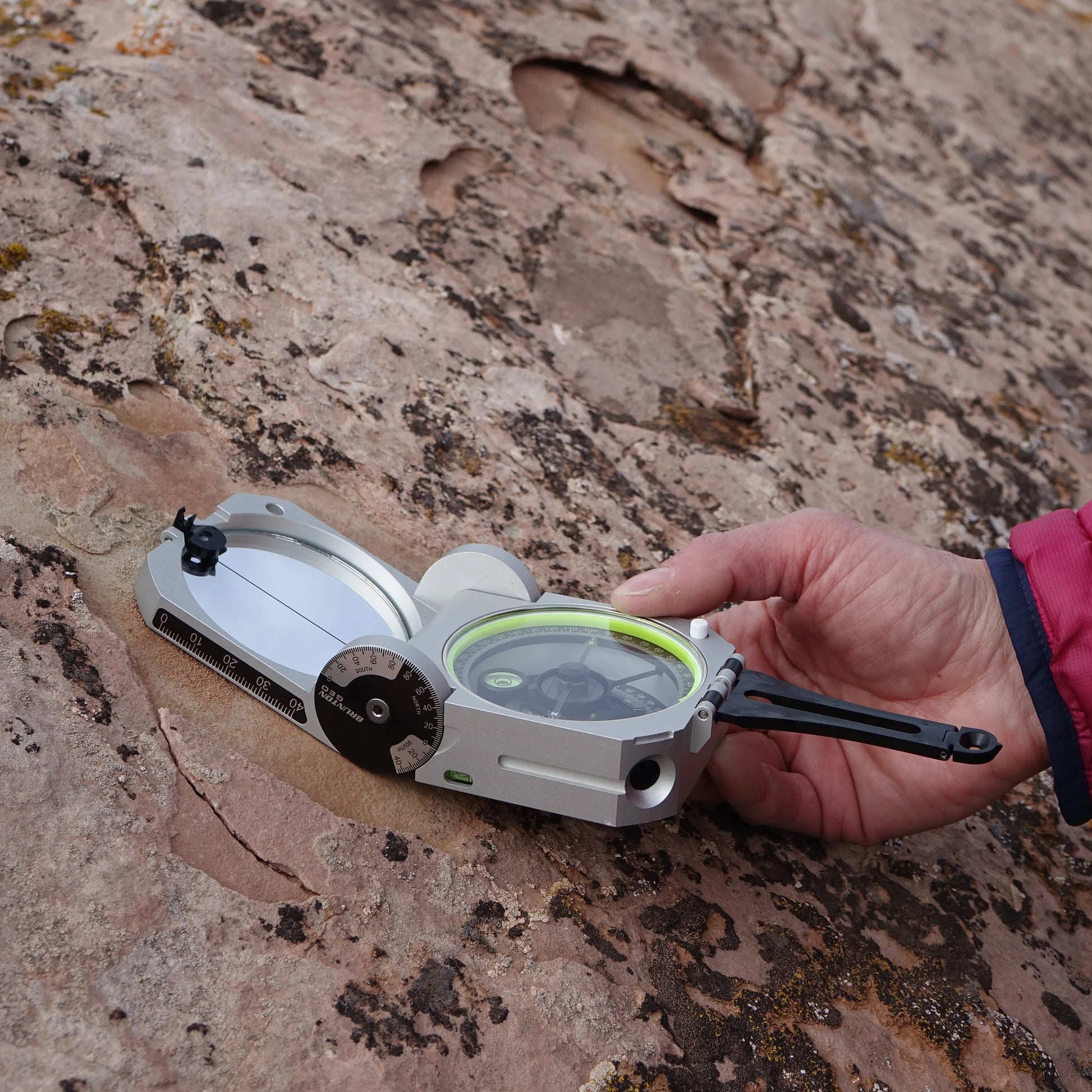

• The flat bottom allows for easier dip angle and dip azimuth measurements at low angles.

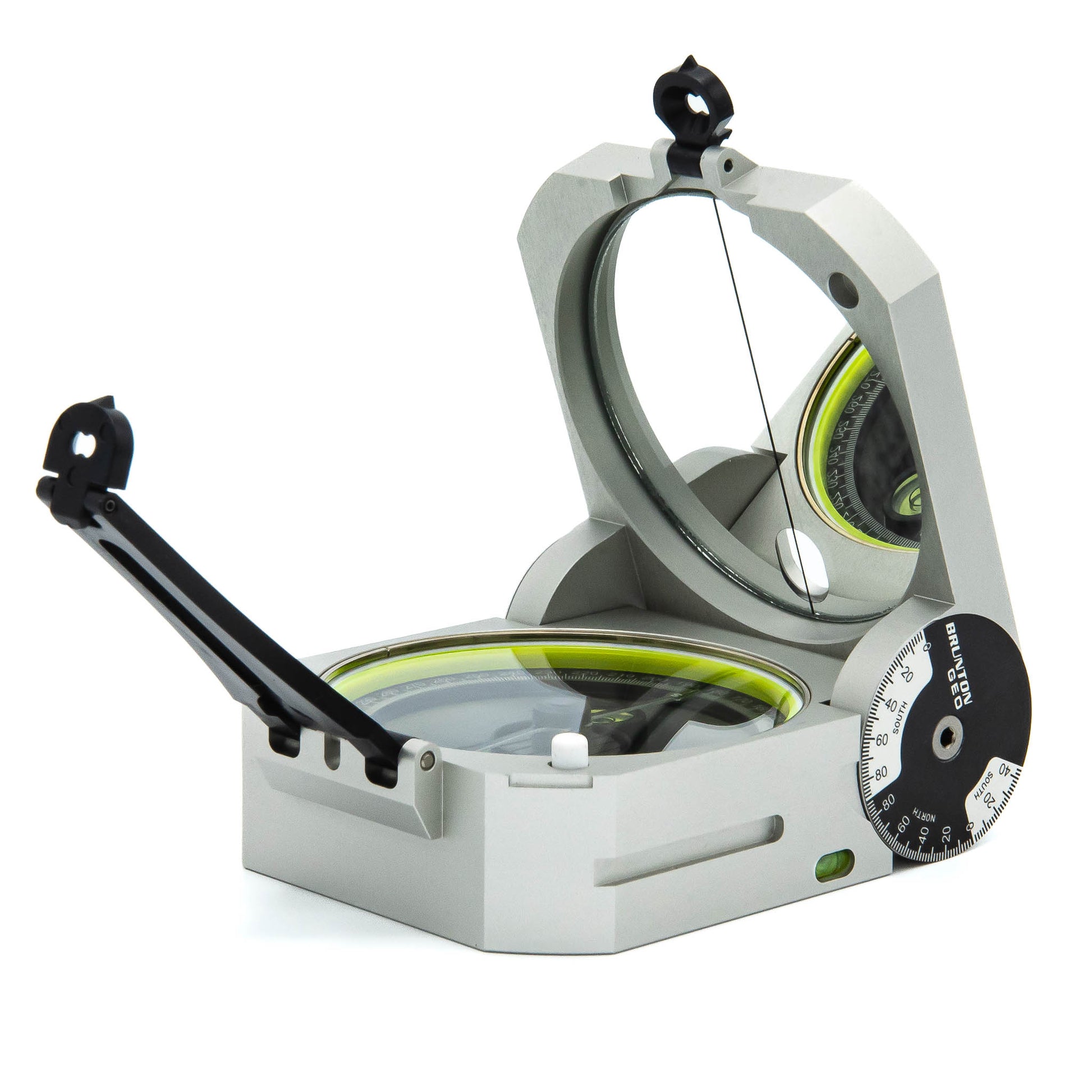

• The mirror enables sighting and measurement of bearings and vertical angles.

• Short and long sights give the user additional functionality and accuracy when shooting bearings.

• Dual long-level bubbles allow the user to level the compass from the sides.

• The needle can be set to lock automatically, allowing for accurate readings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world.

• Induction dampening makes for a quick-settling needle.

• The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

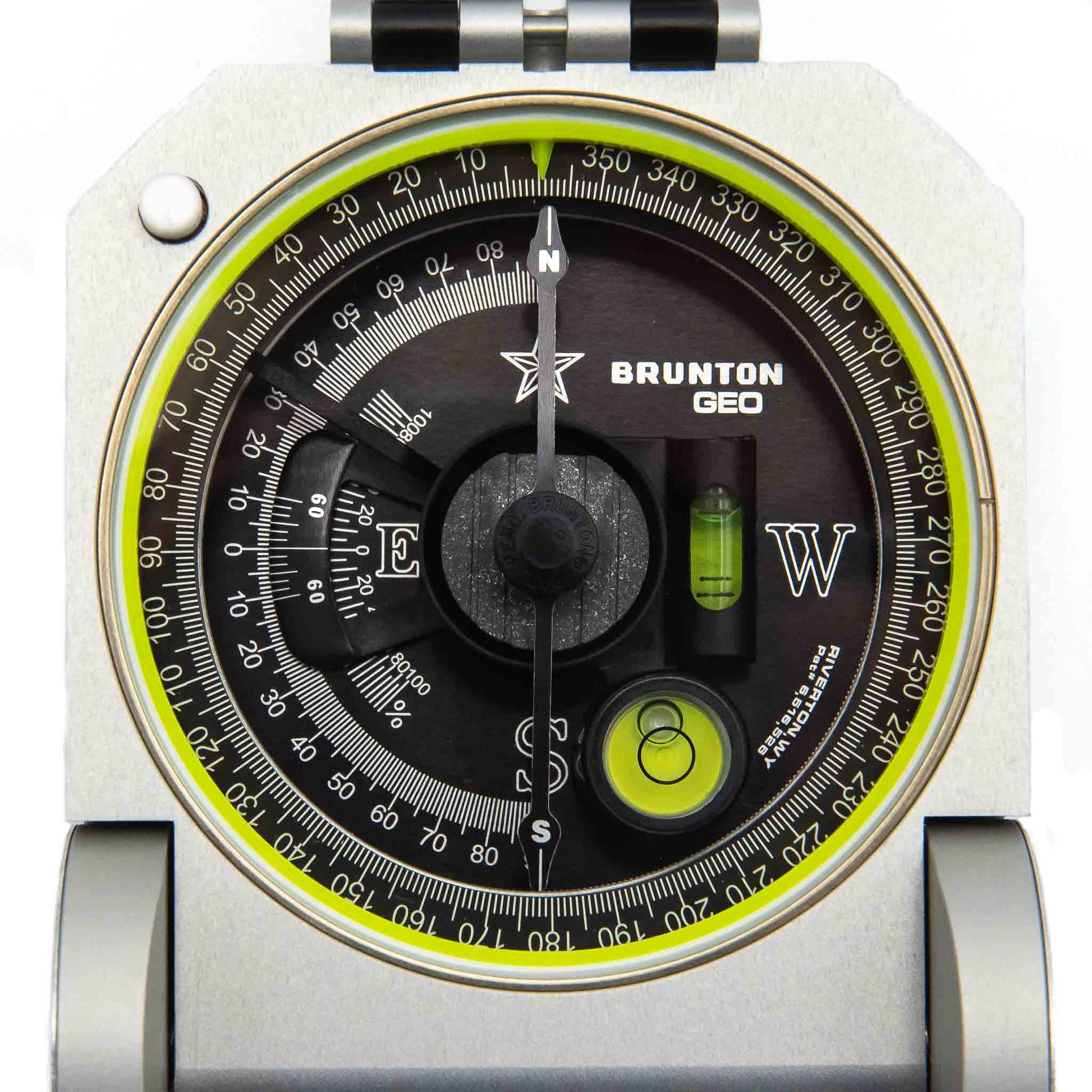

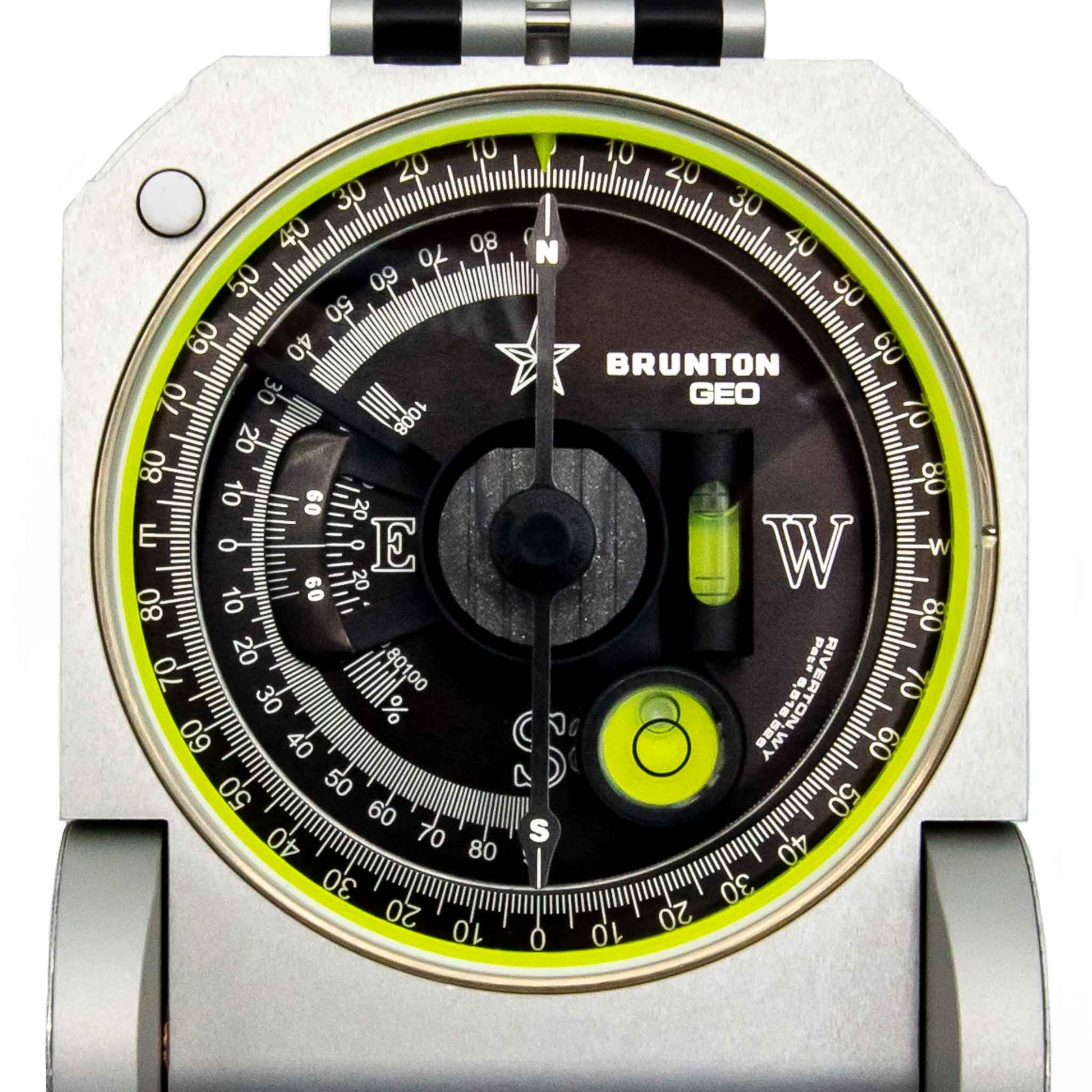

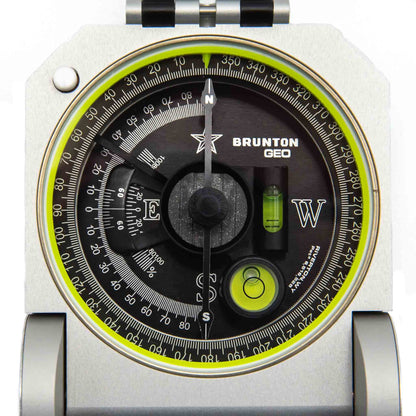

• Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.

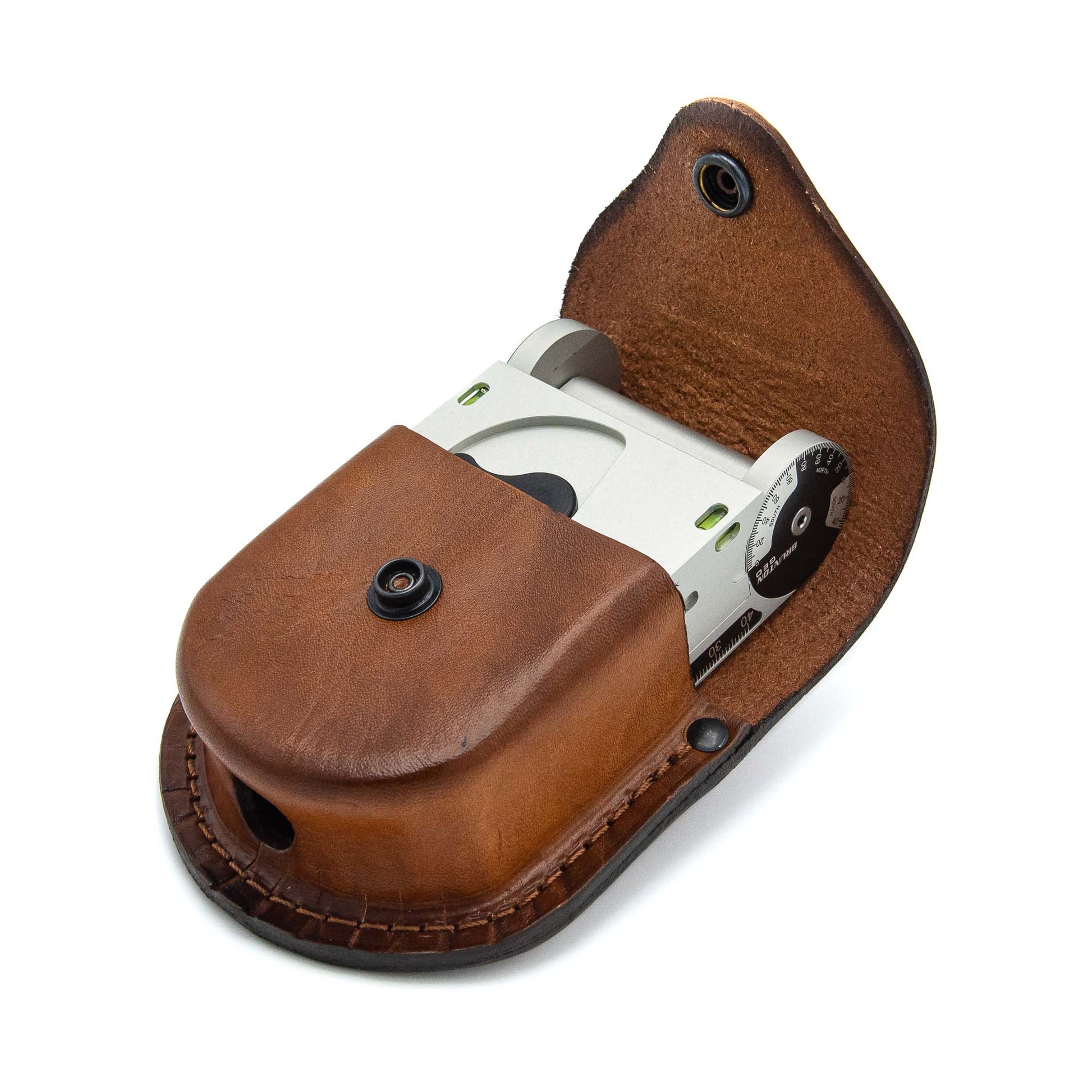

• Each comes with a protective leather case, perfect for carrying your Brunton in the field.

• Made in the USA in Riverton, Wyoming

TECH SPECS

• MEASUREMENT STYLE: Strike & Dip or Dip & Dip Direction
• DIMENSIONS: 3.8 x 2.8 x 1.3 in | 9.6 x 7.1 x 3.3 cm
• WEIGHT: 12.8 oz | 363 g
• AZIMUTH: 1˚ graduations w/± 0.5˚ accuracy
• HINGE DIAL: 2˚ graduations w/ ± 0.5˚ accuracy
• INTERNAL CLINOMETER: 1˚ graduations w/ ±0.5˚ accuracy
• PERCENT GRADE: 5% graduations
• DECLINATION ADJUSTMENT: ±180˚
