Standard Transit - GOLD

Standard Transit - GOLD

$619.95 USD
$619.95 USD
Sale Sold out
Shipping calculated at checkout.

Celebrating 130 years as the Gold Standard of compasses!  Since 1894, Brunton has been building the world's best transits, and this special gold-colored edition honors that long tradition.  Built with all of the functionality and features of traditional Brunton pocket transits, the Standard Transit features a hard-anodized aluminum body and a flat base with a non-slip silicone insert.  The Standard Transit is also available in orange, blue, or silver.  Made in Wyoming, USA.

The special edition Gold Standard Transit comes with a high-quality Gfeller leather case.

Standard Transit Manuals and Videos

Needle Balancing:  If your main region of transit use will not be in the United States, your needle will need a special balance.  Please visit the Needle Balancing Page to identify your main zone, and select it below.
View full details

Details for Standard Transit - GOLD

FEATURES

• Made in the USA in Riverton, Wyoming

• NEW GOLD anodized body to increase visibility in the field in certain areas.

• Newly designed body is CNC-milled and hard-anodized for simplicity and durability.

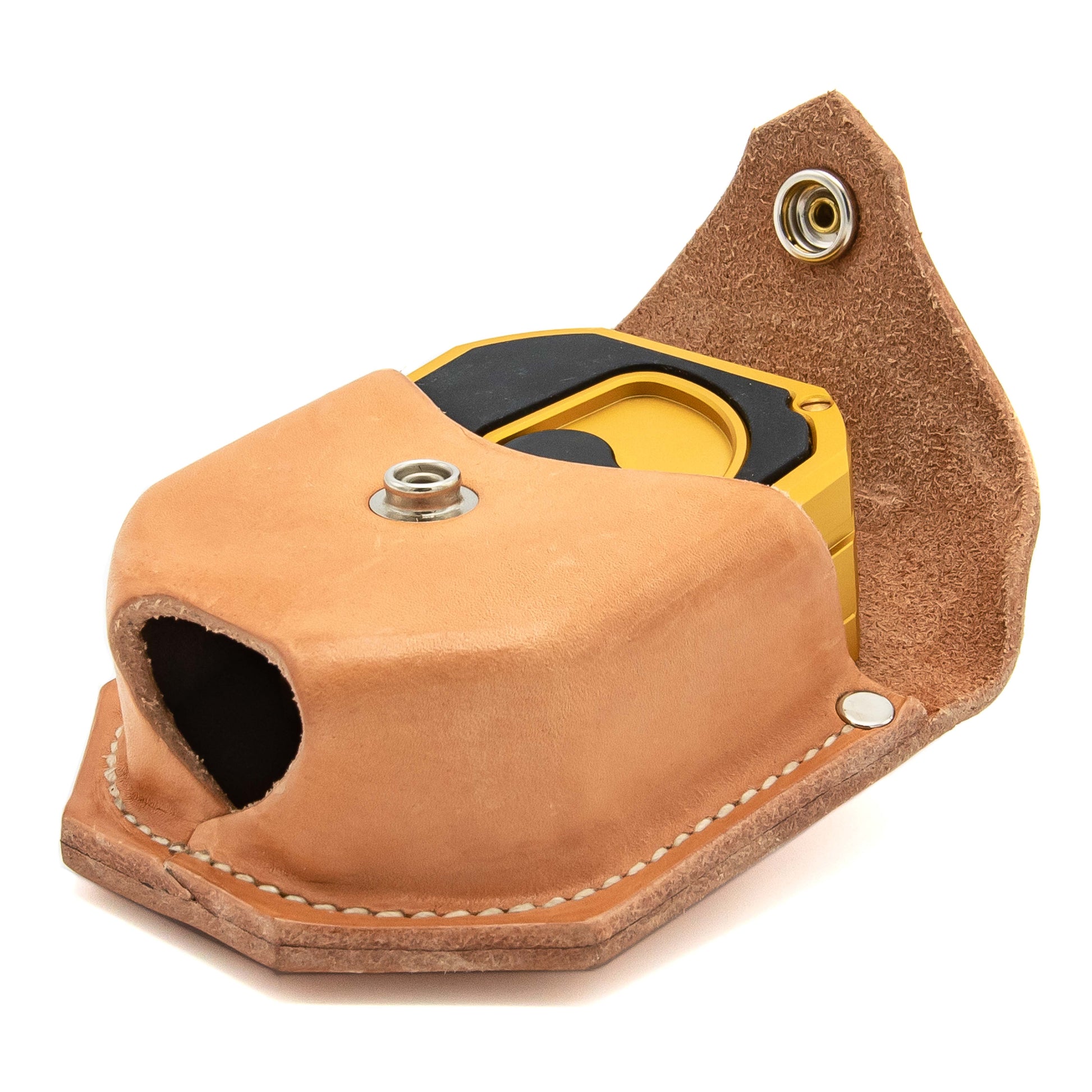

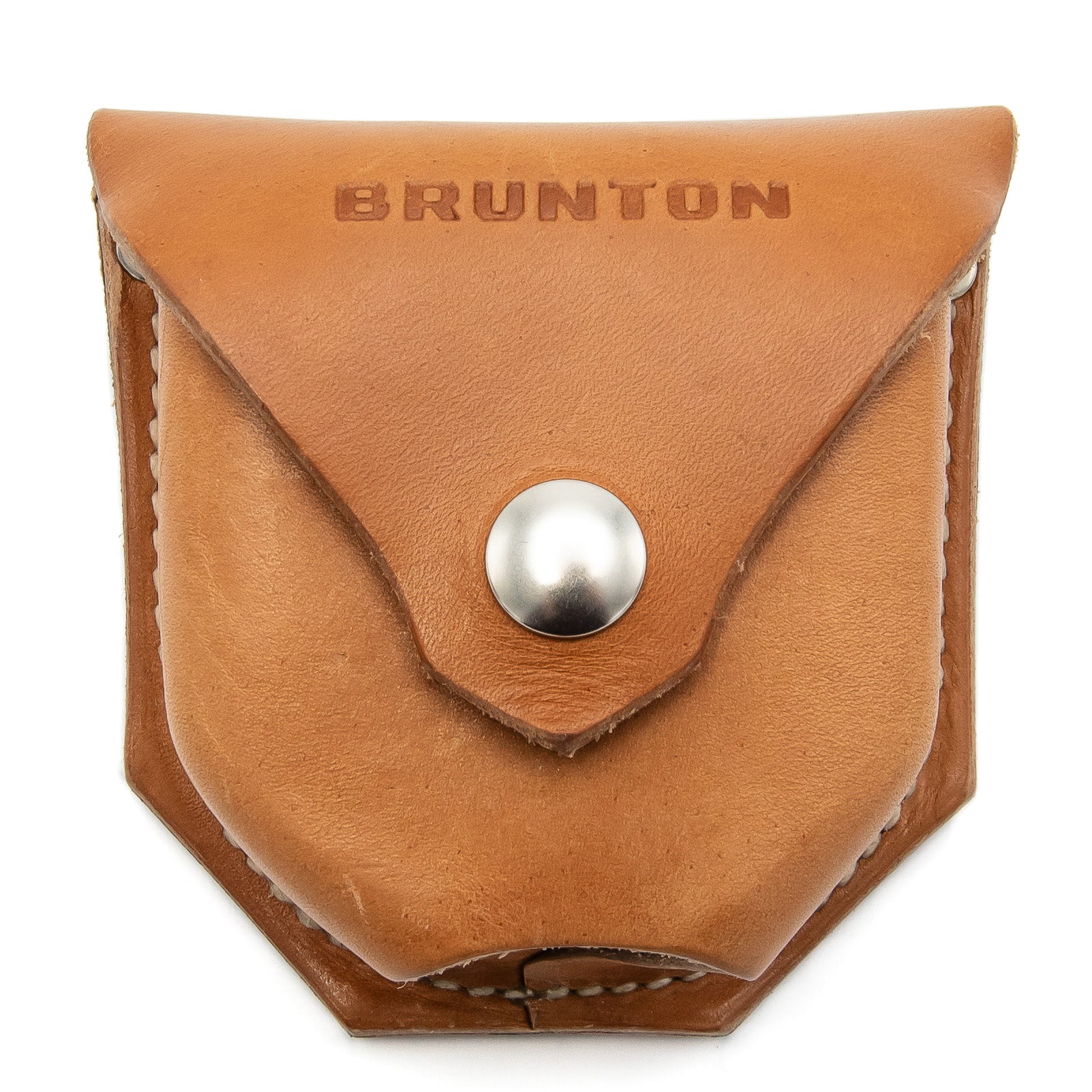

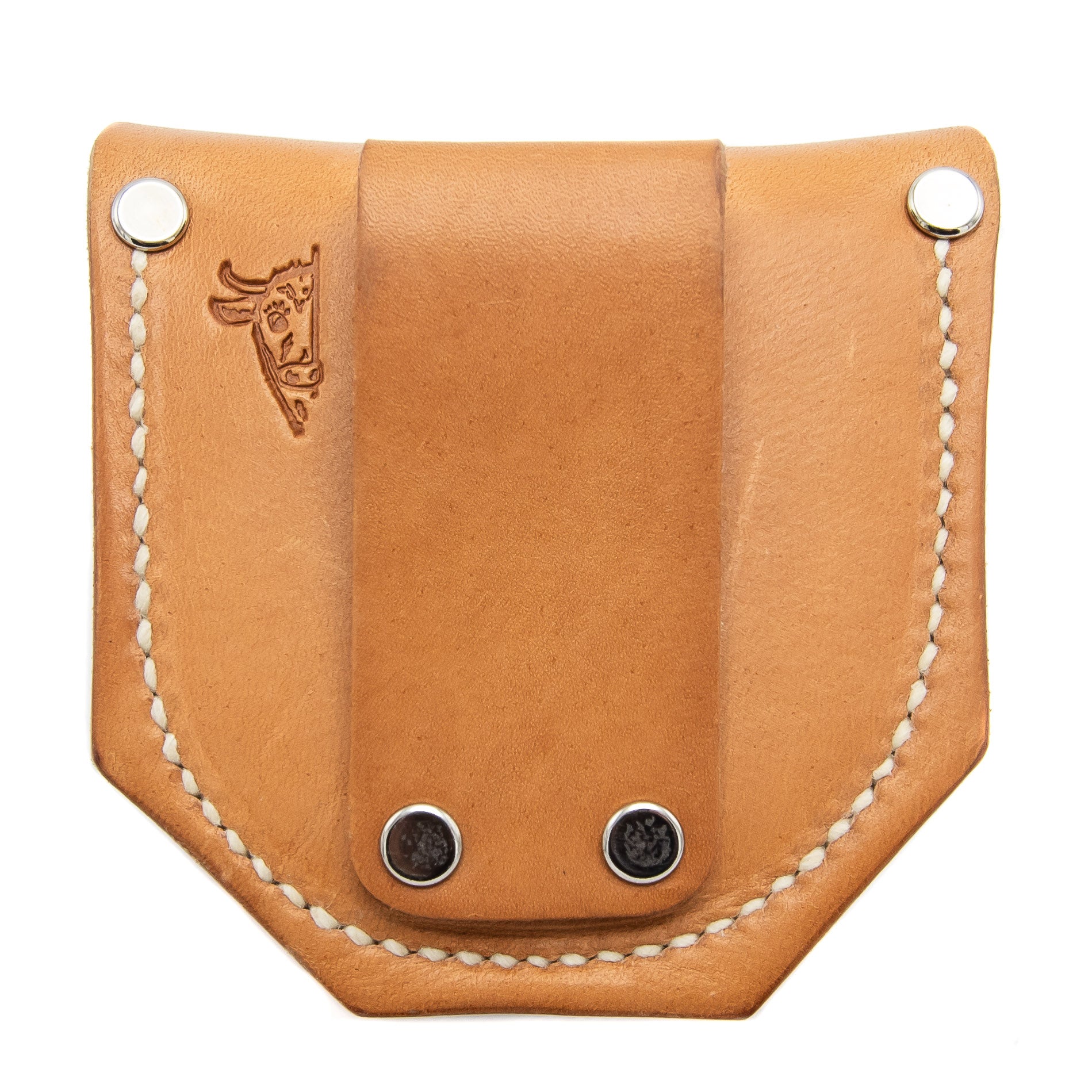

• Comes with a protective GFELLER leather case, perfect for carrying your Brunton in the field.

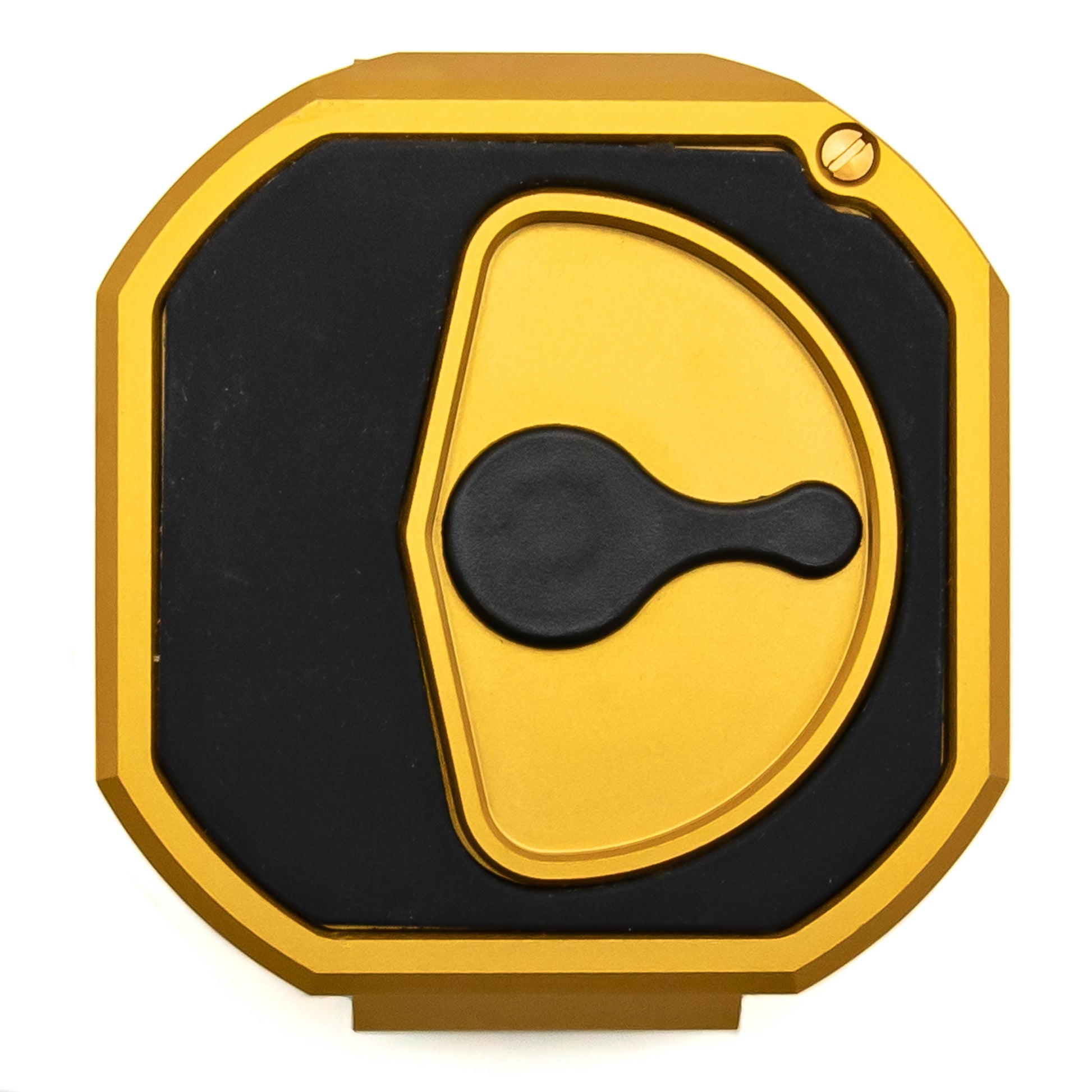

• The flat bottom with a non-slip silicon foot allows for low angle strike and dip measurements.

• Unobtrusive bottle opener that stays out of the way until needed.

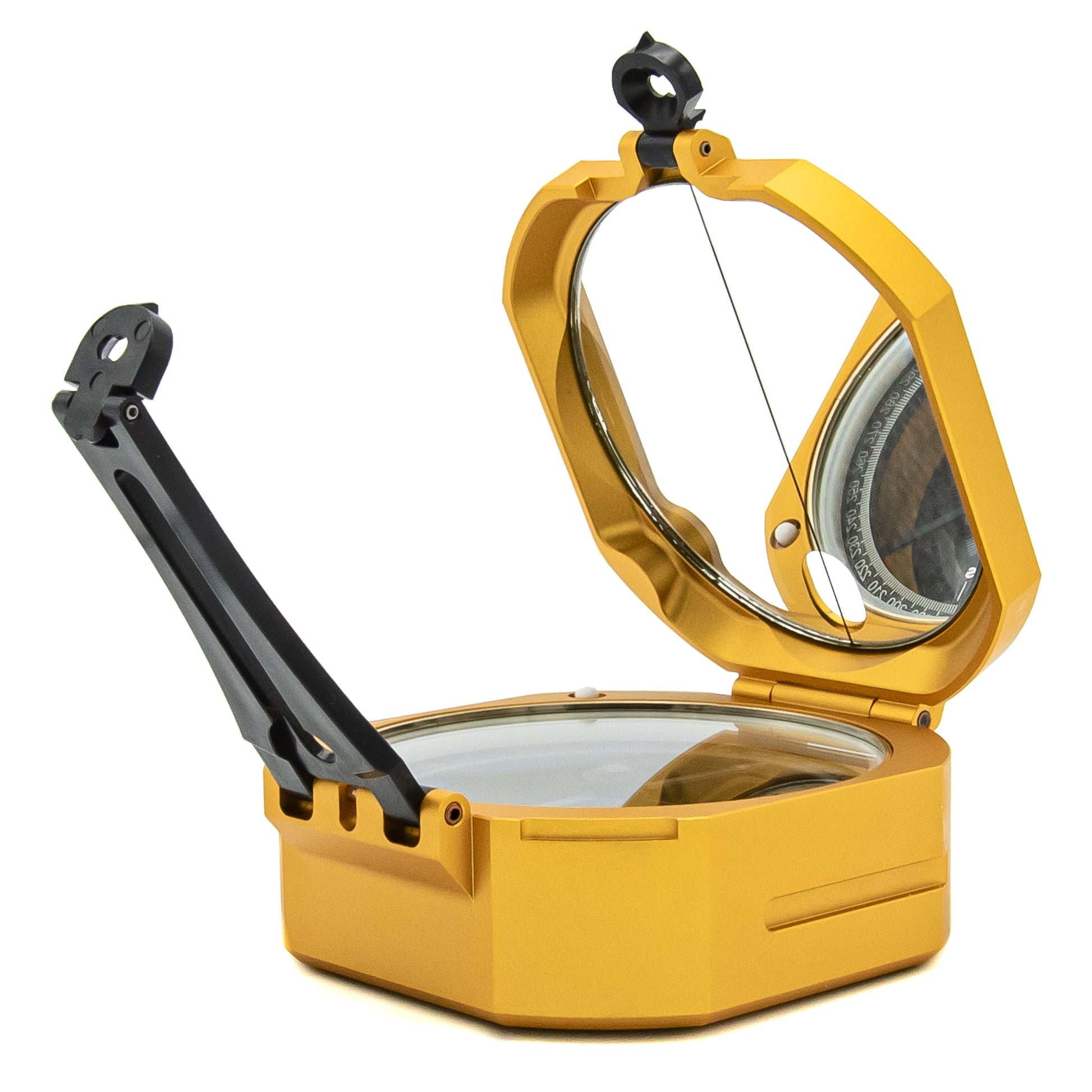

• The mirror enables sighting and measurement of bearings and vertical angles.

• Short and long sights give the user additional functionality and accuracy when shooting bearings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world.

• Induction dampening makes for a quick-settling needle.

• The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

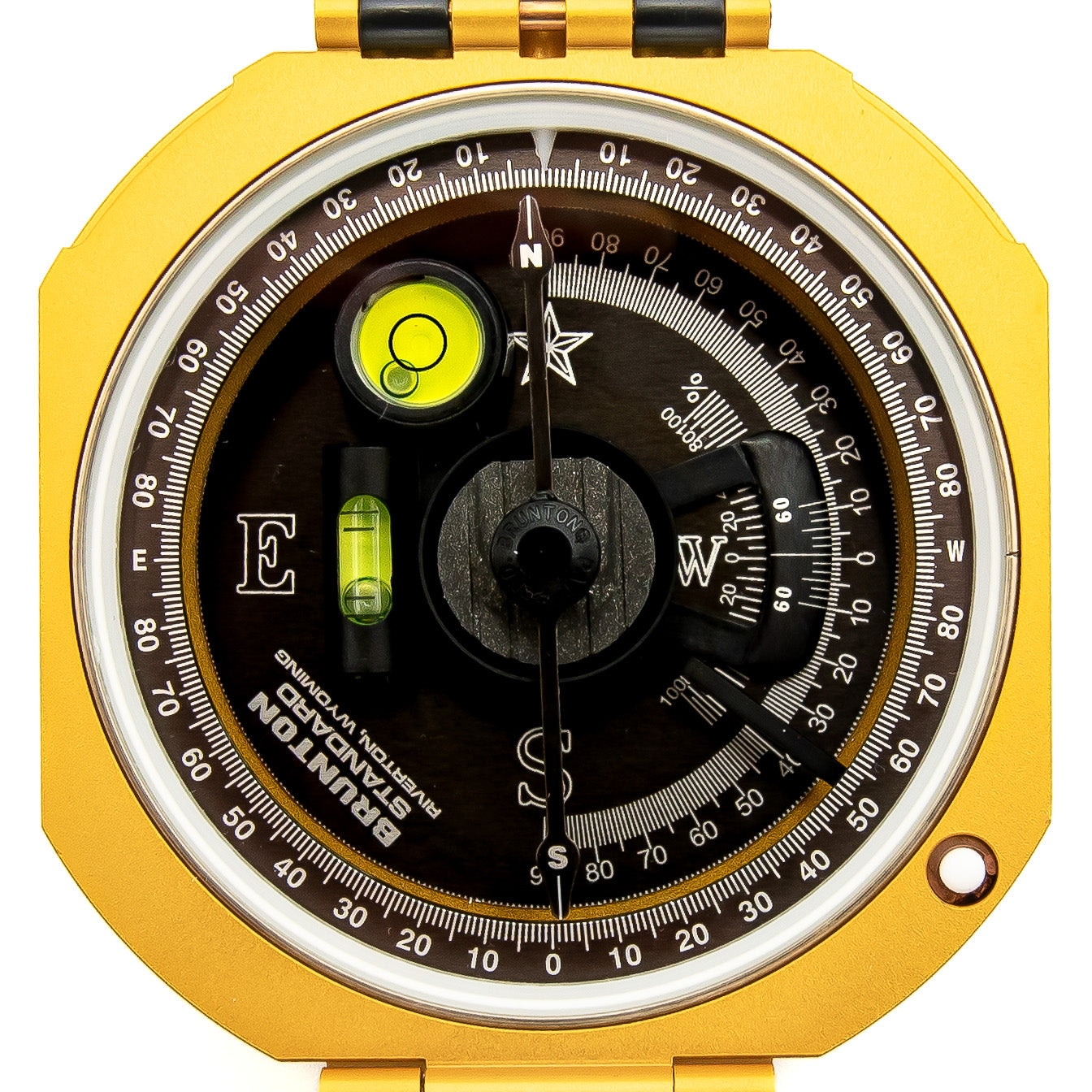

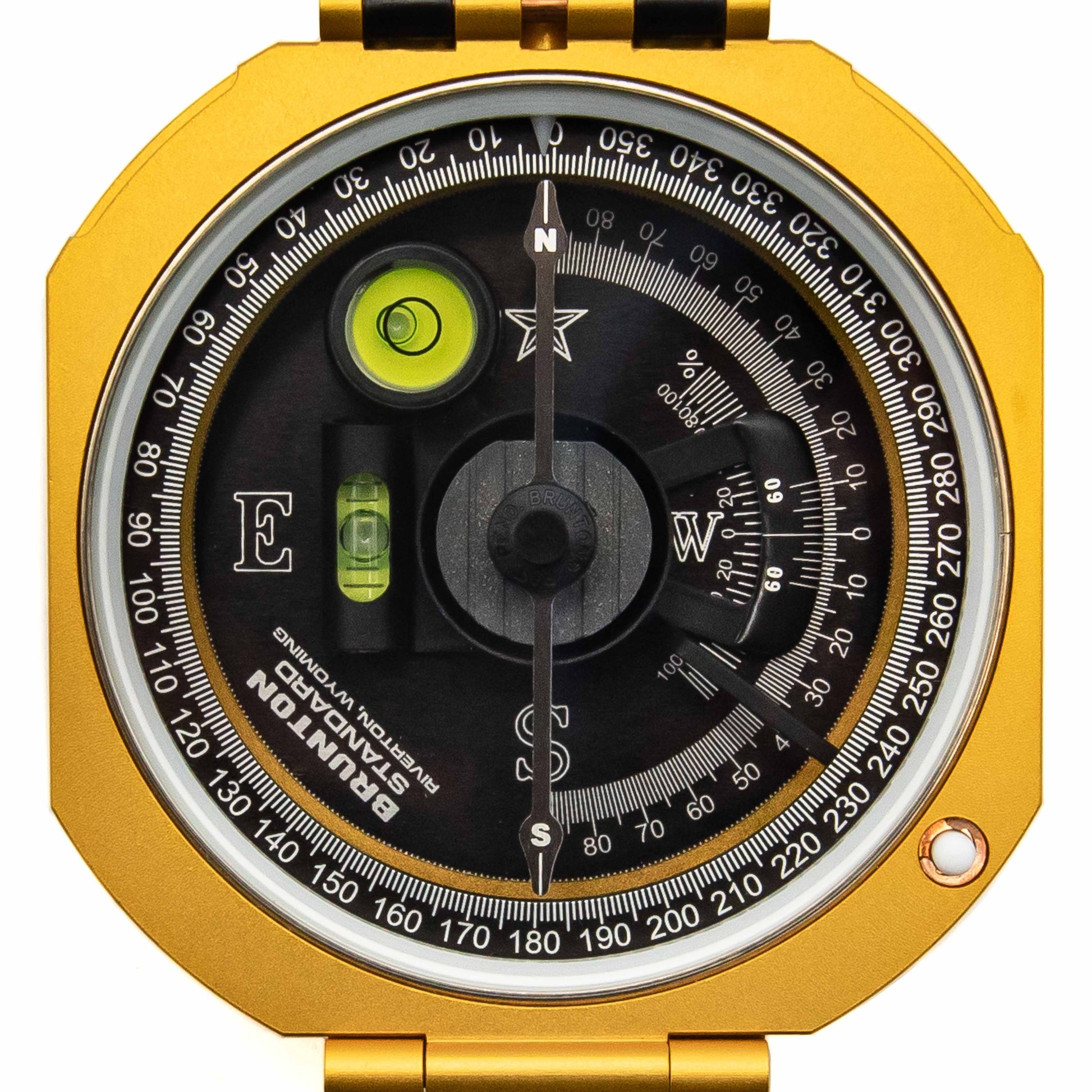

• Each model is available in either Azimuth (0-360) or Quadrant (0-90) formats.

TECH SPECS

• MEASUREMENT STYLE: Strike & Dip
• DIMENSIONS: 3.1 x 2.8 x 1.3 in | 7.9 x 7.1 x 3.4 cm
• WEIGHT: 6.9 oz | 195 g
• AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
• PERCENT GRADE: 5% graduations
• DECLINATION ADJUSTMENT: ± 180˚
