Tactical Transit

Tactical Transit

Regular price $379.95 USD
Regular price Sale price $379.95 USD
Sale Sold out
Shipping calculated at checkout.

THE tactical transit... when precision matters!  The Brunton Tactical Transit offers the same functionality, quality, and durability that the U.S. Military has depended on since WWI.  Built with a green composite body and the same internal components as other Brunton transits, this lightweight tool enables accurate navigation and readings of bearing & angle.  Weather-resistant plastic case included.

Tactical Transit Manuals and Videos

Needle Balancing:  If your main region of transit use will not be in the United States, your needle will need a special balance.  Please visit the Needle Balancing Page to identify your main zone, and select it below.

View full details

Details for Tactical Transit


• Traditional transit measurement method.

• The composite body is ultralight and tough.

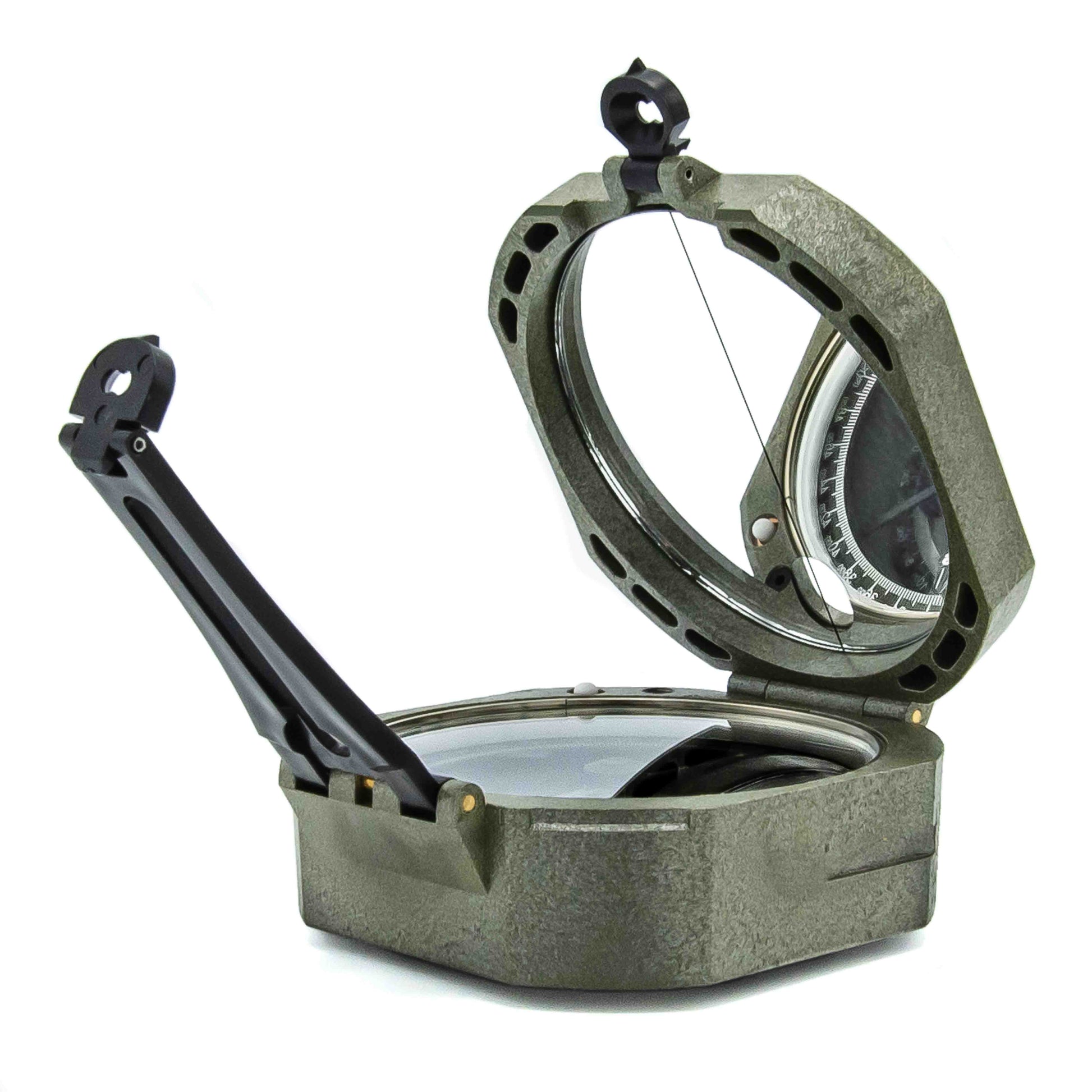

• The mirror enables sighting and measurement of bearings and vertical angles.

• Short and long sights give the user additional functionality and accuracy when shooting bearings.

• The precision NdFeB disc magnet provides very accurate readings and resists demagnetization.

• Our magnetic needle can be balanced for use almost anywhere in the world.

• Induction dampening makes for a quick-settling needle.

• The sapphire jewel bearing allows for smooth needle movement throughout the life of the instrument.

• The needle lock button can lock or free the needle, depending on the model.

• The internal components are sealed with an O-ring for improved water and dust resistance.

• All transits are compatible with our Jacob’s Staff/Tripod ball and socket adaptor.

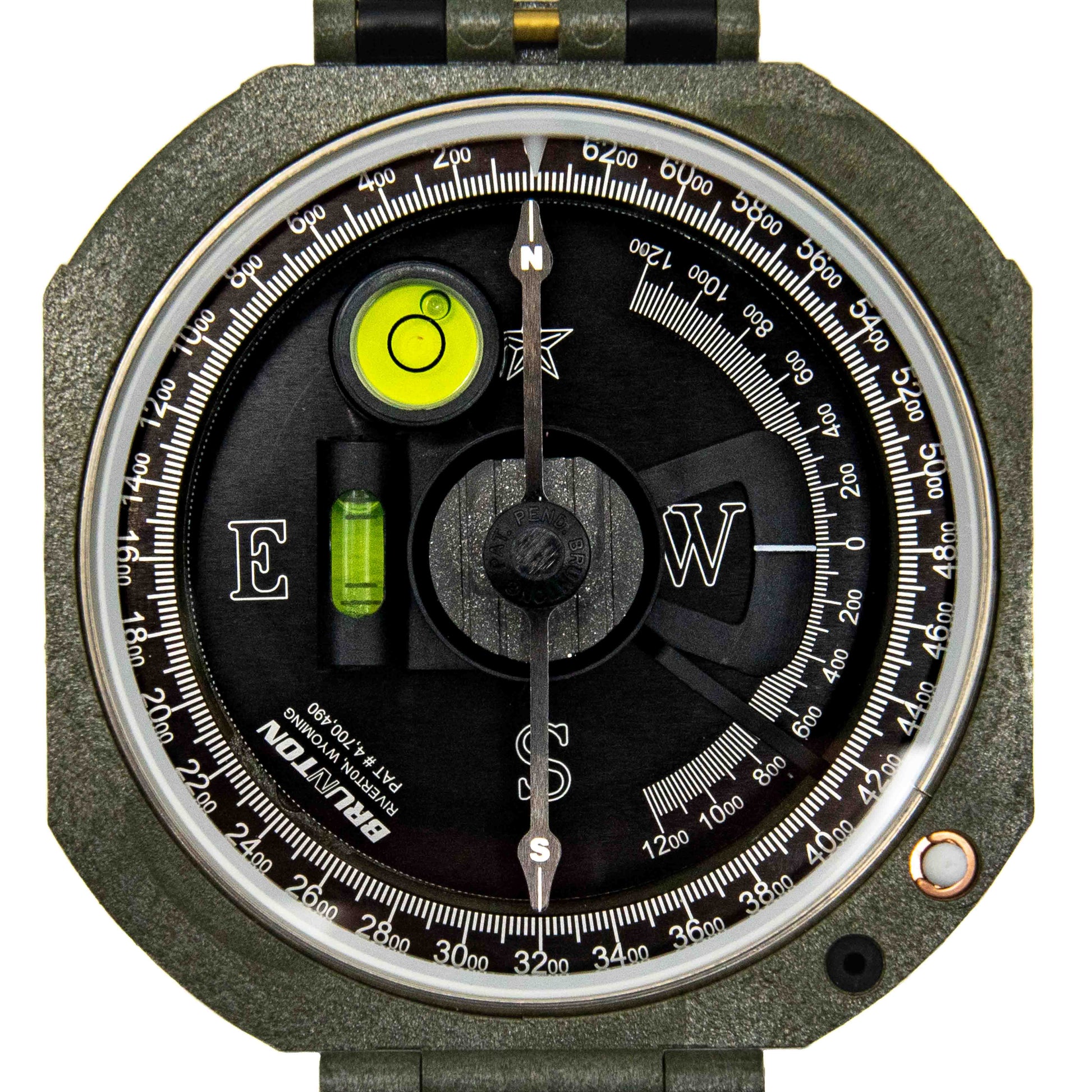

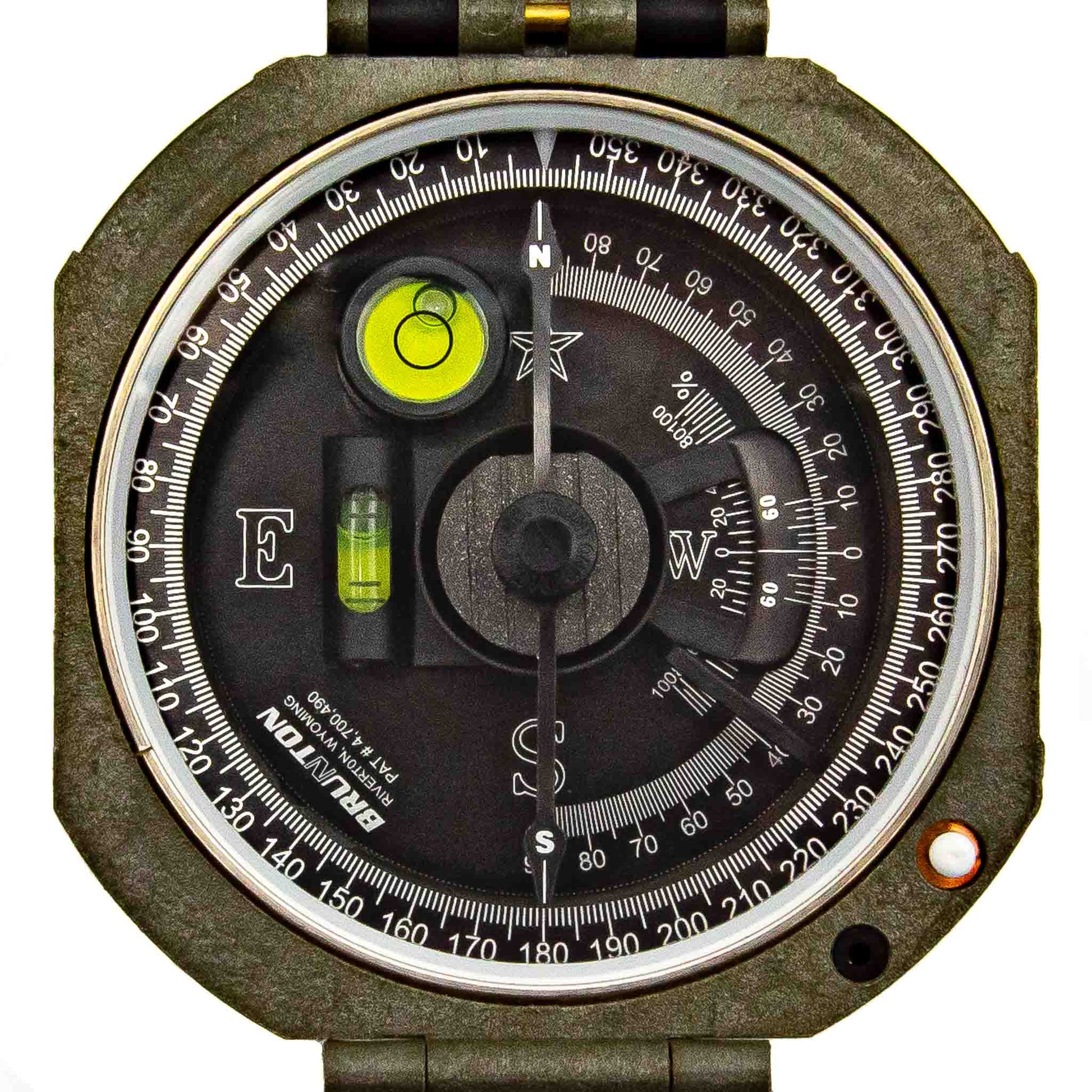

• Each model is available in either Azimuth (0-360) or MILS (0-6400) formats.

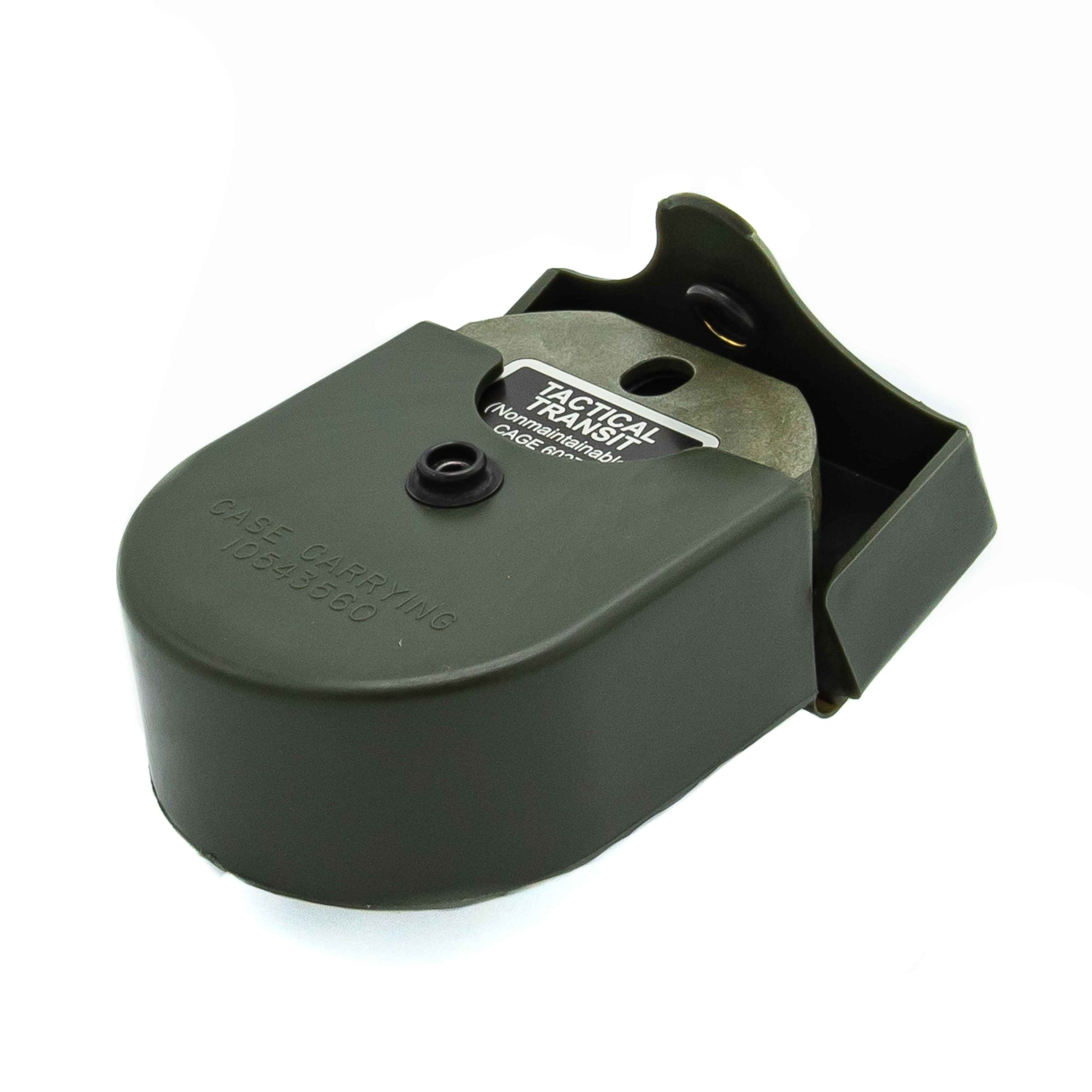

• Each comes with a protective weather-resistant case with built-in belt loop and optional webbing clip.

• Made in the USA in Riverton, Wyoming.


• DIMENSIONS: 3.9 x 2.8 x 1.2 in | 10 x 7 x 3 cm
• WEIGHT: 5.7 oz | 162 g
• AZIMUTH: 1˚ graduations w/ ± 0.5˚ accuracy
• INTERNAL CLINOMETER: 1˚ graduations w/ ± 0.5˚ accuracy
• PERCENT GRADE: 5% graduations
